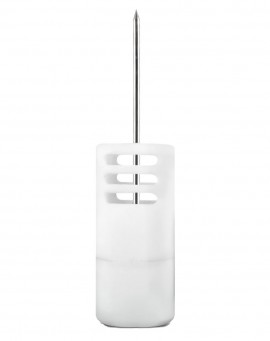

MadgeTech HiTemp140 High Temperature Data Logger with a 5.25" probe and vented thermal shield

Model: HiTemp140-5.25-TSK

MadgeTech HiTemp140 High Temperature Data Logger with a 5.25" probe and vented thermal shield

Model: HiTemp140-5.25-TSK

Rugged with high precision, this stainless steel high-temperature data logger can perform in harsh environments, is submersible, and can withstand temperatures up to 284°F (140°C). In addition, this data logger can store up to 32,256 readings and features a 5.25" (133.35 mm) probe and vented thermal shield.

Rugged with high precision, this stainless steel high-temperature data logger can perform in harsh environments, is submersible, and can withstand temperatures up to 284°F (140°C). In addition, this data logger can store up to 32,256 readings and features a 5.25" (133.35 mm) probe and vented thermal shield.

Your Price $638.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HiTemp140-5.25-TSK High Temperature Data Logger with a 5.25" probe and vented thermal shield

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your HiTemp140-5.25-TSK High Temperature Data Logger with a 5.25" probe and vented thermal shield

MadgeTech HiTemp140-5.25-TSK Offers

Record temperatures in autoclaves and other harsh environments using this Madgetech HiTemp140-5.25-TSK High-Temperature Data Logger with 5.25" Probe and Thermal Shield. The data logger's rigid external probe can record a wide variety of temperatures from -328 to 500°F (-200 to 260°C), and it stores up to 32,700 readings, so you can easily keep track of your information.

Features

  • Stainless-steel data logger is designed to handle harsh environments, such as autoclaves, and withstands temperatures up to 284°F (140°C)
  • Rigid external probe measures temperatures from -328 to 500°F (-200 to 260°C)
  • Non-volatile solid state memory records up to 32,700 date- and time-stamped readings and is capable of retaining the recorded data, even if the battery becomes discharged
  • Start and stop the logger with ease using the Madgetech software, which provides graphical, tabular and summary data for analysis, which can be viewed in°C,°F,°K or°R

MadgeTech HiTemp140-5.25-TSK Specifications

Temperature Range -328 to 500°F (-200 to 260°C)
Temperature Sensor 100 Ω platinum RTD
Temperature Resolution 0.018°F (0.01°C)
Memory 32,700 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 1 year (typical)
Material 316 stainless steel
IP Rating IP68
Submersible Yes
Operating Temperature -40 to 284°F (-40 to 140°C)
Required Interface Package IFC400
CE Compliant Yes
Dimensions 5.25 x 0.13" (134 x 3.2 mm)
Weight 0.5 lbs (0.23 kg)
Click here for complete specifications on the MadgeTech HiTemp140-5.25-TSK

What's included with the MadgeTech HiTemp140-5.25-TSK

  • High-Temperature Data Logger
  • 5.25" (13.34 cm) Probe
  • Thermal Shield

Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140 High Temperature Data Logger with a 5.25" probe and vented thermal shield.

MadgeTech 902063-00 Flat End Cap with spring for the 140 series End Cap
Flat end cap with spring, designed for use with the 140 Series data loggers. Ideal for secure and reliable enclosure.




Ask a question about MadgeTech HiTemp140 High Temperature Data Logger with a 5.25" probe and vented thermal shield

Customer Reviews for the MadgeTech HiTemp140-5.25-TSK

MadgeTech HiTemp140-5.25-TSK Offers

Record temperatures in autoclaves and other harsh environments using this Madgetech HiTemp140-5.25-TSK High-Temperature Data Logger with 5.25" Probe and Thermal Shield. The data logger's rigid external probe can record a wide variety of temperatures from -328 to 500°F (-200 to 260°C), and it stores up to 32,700 readings, so you can easily keep track of your information.

Features

  • Stainless-steel data logger is designed to handle harsh environments, such as autoclaves, and withstands temperatures up to 284°F (140°C)
  • Rigid external probe measures temperatures from -328 to 500°F (-200 to 260°C)
  • Non-volatile solid state memory records up to 32,700 date- and time-stamped readings and is capable of retaining the recorded data, even if the battery becomes discharged
  • Start and stop the logger with ease using the Madgetech software, which provides graphical, tabular and summary data for analysis, which can be viewed in°C,°F,°K or°R

MadgeTech HiTemp140-5.25-TSK Specifications

Temperature Range -328 to 500°F (-200 to 260°C)
Temperature Sensor 100 Ω platinum RTD
Temperature Resolution 0.018°F (0.01°C)
Memory 32,700 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 1 year (typical)
Material 316 stainless steel
IP Rating IP68
Submersible Yes
Operating Temperature -40 to 284°F (-40 to 140°C)
Required Interface Package IFC400
CE Compliant Yes
Dimensions 5.25 x 0.13" (134 x 3.2 mm)
Weight 0.5 lbs (0.23 kg)
Click here for complete specifications on the MadgeTech HiTemp140-5.25-TSK

What's included with the MadgeTech HiTemp140-5.25-TSK

  • High-Temperature Data Logger
  • 5.25" (13.34 cm) Probe
  • Thermal Shield

Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140 High Temperature Data Logger with a 5.25" probe and vented thermal shield.

MadgeTech 902063-00 Flat End Cap with spring for the 140 series End Cap
Flat end cap with spring, designed for use with the 140 Series data loggers. Ideal for secure and reliable enclosure.




Ask a question about MadgeTech HiTemp140 High Temperature Data Logger with a 5.25" probe and vented thermal shield

Customer Reviews for the MadgeTech HiTemp140-5.25-TSK
