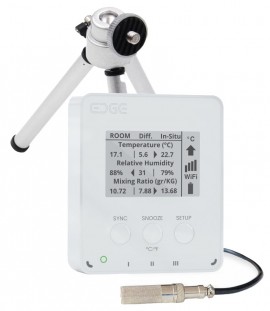

Delivering real-time monitoring for restoration and building environments, this cellular + WiFi logger features an E-Ink display that tracks ambient and external temperature, relative humidity, moisture mixed ratio, and flood detection. It shows drying direction on-screen and provides audible and visible alarms. ASTM F2170 compliant, with global connectivity, location tracking, and up to 1-year battery life.
Delivering real-time monitoring for restoration and building environments, this cellular + WiFi logger features an E-Ink display that tracks ambient and external temperature, relative humidity, moisture mixed ratio, and flood detection. It shows drying direction on-screen and provides audible and visible alarms. ASTM F2170 compliant, with global connectivity, location tracking, and up to 1-year battery life.
EDGE In-Situ Cellular supports both WiFi and LTE-M cellular communication, switching to cellular automatically when WiFi becomes unavailable, such as during power disruptions affecting network routers. It also provides location logging.
The unit delivers concrete curing and environmental monitoring for ambient/in-slab temperature, RH, drying direction, and ASTM F2170 compliance. Equipped with a flood sensor input, e-ink display, LED, buzzer, and USB-C socket, it alerts users during power loss or restoration with both sound and visual alerts. LoggerFlex Cloud delivers drying insights, mold alerts, and field-ready reporting via SMS, call, and email. With BLE setup and 1-year battery, it’s ideal for restoration contractors, engineers, insurance reporting, and construction sites where WiFi is unavailable or unreliable.
Features
Applications
| Measuring Range | Ambient temperature: -4 to 160°F (-20 to 70°C) Display will be paused below 32°F (0°C) and above 122°F (50°C) Ambient RH: 0 to 99% (non-condensing) |
| Accuracy | ±0.36°F (0.2°C) ±1.8% RH (at 77°F/25°C, 10 to 90%) |
| External Sensor(s) Range and Accuracy | Temperature: -67 to 257°F (-55 to 125 °C) RH: 0 to 99% (non-condensing) ±0.18°F (±0.1°C) in the 68 to 140°F (20 to 60°C range) ±in the 20 to 80% RH range (1.5 %RH typical) ±2.0% RH max over the full 0 to 100% RH range |
| PORT I | Sensor splitter for external temperature and humidity sensor |
| PORT II | Optional digital input: Dry contact or flood detector |
| PORT III | Sensor splitter for external temperature and humidity sensor |
| Connectivity | Cellular LTE-M & GPRS + Wi-Fi - IEEE 802.11 b/g/n - 2.4 GHz + Bluetooth Low Energy (BLE) |
| Power Supply | Internal: 4 x AA alkaline battery External USB-C charger: 5 V DC (not included in the package) |
| Dimensions | 4-1/4 x 3-1/2 x 1-¹¹/₃₂" (103 x 89 x 29 mm) |
| Weight | 1.46 lbs (0.7 kg) |
