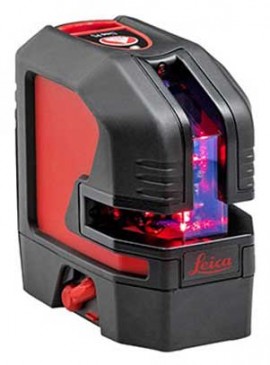

Leica Lino L2P5 Cross Line and Point Laser, Red

Model: L2P5 | Order No: 777069 | UPC: 7640110692639

Be the first to review this product

Leica Lino L2P5 Cross Line and Point Laser, Red-

Downloads: manual

More Leica Products

Ask an Expert

Leica Lino L2P5 Cross Line and Point Laser, Red

Model: L2P5 | Order No: 777069 | UPC: 7640110692639

Be the first to review this product

Transforms your X series handheld laser distance meter into a complete measuring station capable of precisely determining the distances between any two points. In combination with the Leica DISTO™ Plan app, it allows the user to create scaled plans that can be further processed in CAD tools.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Toolbox category for similar products.

Or let's do a search and help you find what you need:

Leica L2P5 Offers

The Leica Lino L2P5 is a a self-levelling cross-line and point laser. This Lino is ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations as well as plumb point projection, setting out or transferring measured points. Leica optics enable the Lino L2P5 to project very bright and clearly visible laser lines and dots. Depending on the lighting conditions, the working range is up to 25 meters. This range can be easily extended up to 80 meters by using the laser receiver.

Features

With magnetic adapters which allow you to position the instrument quickly and with absolute precision
Can easily be attached within U-profiles, to edges, or any magnetic surfaces
Automatically adjusts its positioning up to ±4° when slightly out of level without any manual alignment
Runs with Li-Ion batteries for up to 44 hours on one charge or it can also be powered by alkaline batteries or its charger
Dust and spray water protected to IP 54 standards

Leica L2P5 Specifications

Range	Up to 25m Depending on Lighting Conditions
Range with Laser Receiver	Up to 80m Depending on Lighting Conditions
Leveling Accuracy	± 0.2mm/m
Self-Leveling Range	± 4°
Self-Leveling Time	< 3s
Number of Laser Dots	4
Number of Laser Lines	2
Beam Direction	Vertical, Horizontal, Up, Down, Right, Left
Operating Time	Up to 44h (Li-Ion) Depending on Laser Mode
Temperature Range Storage	-25 to 70°C (-13 to 158°F)
Temperature Range Operation	-10 to 50°C (14 to 122°F)
Protection Class	IP 54
Dimensions	110 x 60 x 100mm
Weight with Batteries	530g

What's included with the Leica L2P5

LINO L2P5 Crossline and 5-Point laser
Batteries
Hard Case
target plate
storage pouch
Wall Bracket

manual for the Leica Lino L2P5 Cross Line and Point Laser, Red
