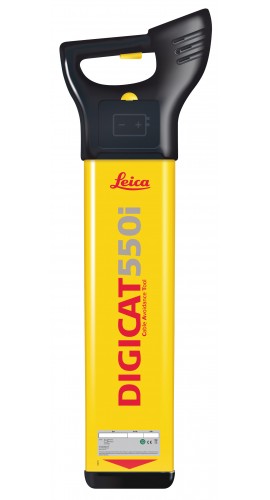

Leica Geosystems 780232 Digicats550i Underground Service Locator Offers

Features

• Locate, trace and mark underground services quickly, precisely and reliably prior to excavation
• Multiple modes of operation: Power Mode (Default Mode): Locates power signals radiated by energized cables which pose the most significant risk to excavation teams;Radio Mode (15-60Hz): Traces signals originating from distant radio transmitters. These radio signals penetrate the ground and are reradiated by buried metallic cables and pipes;Auto Mode: Combines the benefit of simultaneous detection in Power and Radio modes and helps to confirm the presence of services upon initial site occupation making cable detection easier and safer;Generator Mode (8 & 33kHz): Locates a specific signal applied by the Digitex™ 8/33 dual frequency signal generator to a metallic underground conductor, enabling the most difficult of services to be located or identified.
• Starts in Power mode ensuring that the most potentially dangerous current carrying services are detected first
• Hazard Zone indicates the presence of a shallow buried service in power, 8kHz, 33kHz and Auto mode (within approximately 1 ft/30cm) alerting users to the increased risk
• Built-in test function allowing the operators to test hardware and software functionality before use
• Utility depth estimation to 10 ft/3m
• Highly visible LCD with built-in light sensor and automatic backlight
• Feet-inches or metric selectable
• Numeric signal strength readout
• Peak reading hold

Applications

Ideal for the following applications: Surveying.
