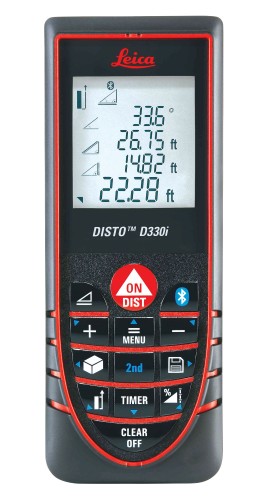

Leica D330i Laser Distance Measurer

Model: D330i | Order No: 776748 | UPC: 7640110692714

Be the first to review this product

Downloads: datasheet

More Leica Products

Ask an Expert

Leica D330i Laser Distance Measurer

Model: D330i | Order No: 776748 | UPC: 7640110692714

Be the first to review this product

9 measurement mode LDM accurate to 1/16 of an inch. Smart Horizontal mode uses angle data from a tilt sensor and does the math to solve for the level horizontal distance to your target.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Leica DISTO™ D5 Laser Distance Meter, 200M

Model: D5 | Order No: 950908

Thanks to the digital Pointfinder, the DISTO D5 is particularly suitable for distance measurements in outdoor areas. Both the target and the measurement results can be seen very clearly on the display with IPS technology, ensuring accurate aiming and precise results, even in very bright environments and over long distances.

Learn More

Leica D330i Offers

Features

±45° tilt sensor
Trapezium function provides simple measurement of roof slopes and facade areas
Automatic multifunctional end-piece
Bluetooth® V2.0
Power Range Technology
Min/Max Measurements
Addition/Subtraction
Area/Volume Measurements
Triangle/Room Angle
Trapezium Measurements
Room Data (Painter function)
Building Information Modelling
Inclination Tracking
Smart Horizontal Mode
Sloped Object Measurement
Height Tracking
Timer Function
Digital Illumination

Leica D330i Specifications

Measuring Range	up to 330 ft
Accuracy	±1/16"
Measuring Units	0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.0 in, 0 in 1/32
Distance/Ø Laser Dot	10, 50, 100 m/6, 30, 60 mm
Pythagoras Function	2 points, 3 points, 3 point partial-height
Tilt Sensor Measuring Range	±45°
Accuracy of Tilt Sensor	±0.3°
Tilt Sensor Units	±0.0°, 0.00%
Recall Last Values	20
Stake-out Function	Dual offset, a/b
Data Interface	Bluetooth® V2.0, Class 2, 33' range
Multifunctional Endpiece	Yes, automatic
Tripod Thread	1/4" - 20, brass metal
Spray Proof/Dust Protected	IP54
Power Supply	2 x 1.5V AAA
Battery Life	up to 5,000 measurements
Dimensions	5.0 x 1.9 x 1.1"
Weight	5.4 oz

Click here for complete specifications on the Leica D330i

What's included with the Leica D330i

Leica D330i Laser Distance Measurer

datasheet for the Leica D330i Laser Distance Measurer

Ask a question about Leica D330i Laser Distance Measurer

Customer Reviews for the Leica D330i

Description ➕➖

Leica D330i Offers

Features

±45° tilt sensor
Trapezium function provides simple measurement of roof slopes and facade areas
Automatic multifunctional end-piece
Bluetooth® V2.0
Power Range Technology
Min/Max Measurements
Addition/Subtraction
Area/Volume Measurements
Triangle/Room Angle
Trapezium Measurements
Room Data (Painter function)
Building Information Modelling
Inclination Tracking
Smart Horizontal Mode
Sloped Object Measurement
Height Tracking
Timer Function
Digital Illumination

Specifications ➕➖

Leica D330i Specifications

Measuring Range	up to 330 ft
Accuracy	±1/16"
Measuring Units	0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.0 in, 0 in 1/32
Distance/Ø Laser Dot	10, 50, 100 m/6, 30, 60 mm
Pythagoras Function	2 points, 3 points, 3 point partial-height
Tilt Sensor Measuring Range	±45°
Accuracy of Tilt Sensor	±0.3°
Tilt Sensor Units	±0.0°, 0.00%
Recall Last Values	20
Stake-out Function	Dual offset, a/b
Data Interface	Bluetooth® V2.0, Class 2, 33' range
Multifunctional Endpiece	Yes, automatic
Tripod Thread	1/4" - 20, brass metal
Spray Proof/Dust Protected	IP54
Power Supply	2 x 1.5V AAA
Battery Life	up to 5,000 measurements
Dimensions	5.0 x 1.9 x 1.1"
Weight	5.4 oz
