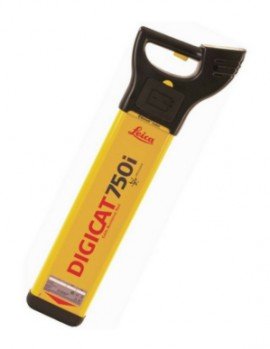

The cable locator has automatic controls and Auto Mode designed for precise and reliable utility positioning. It features onboard memory and Bluetooth® connectivity for easy data transfer. It also comes with depth estimation and integrated GPS technology to easily display the location information.
The cable locator has automatic controls and Auto Mode designed for precise and reliable utility positioning. It features onboard memory and Bluetooth® connectivity for easy data transfer. It also comes with depth estimation and integrated GPS technology to easily display the location information.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Underground Locators category for similar products.
Or let's do a search and help you find what you need:
The cable locator has automatic controls and Auto Mode designed for precise and reliable utility positioning. It features onboard memory and Bluetooth® connectivity for easy data transfer. It also comes with depth estimation and integrated GPS technology to easily display the location information.
Features
Applications
| Specifications | |
| Frequency/Mode | Power mode: 60 Hz; Radio mode: 15 kHz to 60 kHz; Transmitter mode: 8 kHz and 33 kHz; Auto mode: Power plus Radio mode |
| Depth Detection | Power: to 9.8' (3 m); radio: to 6.6' (2 m); transmitter mode dependant on signal transmitter or sonde |
| Protection | Conforms to IP54 |
| Batteries | 6 x AA alkaline (IEC LR6), supplied |
| Battery Life | 40 hours intermittent use at 68°F (20°C) |
| Bluetooth | Enabled |
| Compatibility | CSV file compatibility program |
| GPS Accuracy | 2.5 m CEP, SBAS 2 m CEP |
| Depth Estimation | 10% of depth in line or sonde (0.3 to 3 m depth range) |
| Specifications | |
| Frequency/Mode | Power mode: 60 Hz; Radio mode: 15 kHz to 60 kHz; Transmitter mode: 8 kHz and 33 kHz; Auto mode: Power plus Radio mode |
| Depth Detection | Power: to 9.8' (3 m); radio: to 6.6' (2 m); transmitter mode dependant on signal transmitter or sonde |
| Protection | Conforms to IP54 |
| Batteries | 6 x AA alkaline (IEC LR6), supplied |
| Battery Life | 40 hours intermittent use at 68°F (20°C) |
| Bluetooth | Enabled |
| Compatibility | CSV file compatibility program |
| GPS Accuracy | 2.5 m CEP, SBAS 2 m CEP |
| Depth Estimation | 10% of depth in line or sonde (0.3 to 3 m depth range) |
