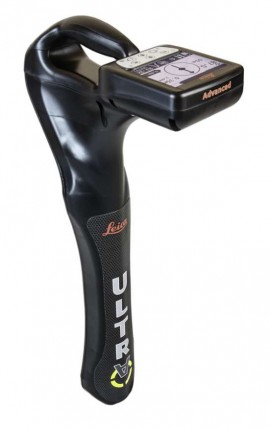

The advanced locator comes with Ambient Interference Measurement (AIM) that guards effective tracing against interference. It features Bluetooth® connectivity and has receiver/transmitter communications. It also comes with Offset Depth that measures horizontal and vertical distance to the line. The advanced locator features 100 programmable operating frequencies that allow configurations for different project environments.
The advanced locator comes with Ambient Interference Measurement (AIM) that guards effective tracing against interference. It features Bluetooth® connectivity and has receiver/transmitter communications. It also comes with Offset Depth that measures horizontal and vertical distance to the line. The advanced locator features 100 programmable operating frequencies that allow configurations for different project environments.
The advanced locator comes with Ambient Interference Measurement (AIM) that guards effective tracing against interference. It features Bluetooth® connectivity and has receiver/transmitter communications. It also comes with Offset Depth that measures horizontal and vertical distance to the line. The advanced locator features 100 programmable operating frequencies that allow configurations for different project environments.
Features
Applications
| Specifications | |
| Frequency Range | 50 Hz to 200 kHz |
| Sensitivity | 33 kHz (1 µA at 1 m) |
| Depth, Max | 20' (6 m) |
| Locate Accuracy | ±5% depth |
| Enabled Frequencies | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Environmental Protection | IP65 |
| Battery | 2 D-cell (LR20) |
| Battery Life (Max) | 30 hours continuous, 70 hours intermittent |
| Dimension | 27.2 x 12.8 x 4.75" (691 x 325 x 122 mm) |
Click on a category to view a selection of compatible accessories with the Leica 818698 ULTRA Advanced Locator.
| Specifications | |
| Frequency Range | 50 Hz to 200 kHz |
| Sensitivity | 33 kHz (1 µA at 1 m) |
| Depth, Max | 20' (6 m) |
| Locate Accuracy | ±5% depth |
| Enabled Frequencies | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Environmental Protection | IP65 |
| Battery | 2 D-cell (LR20) |
| Battery Life (Max) | 30 hours continuous, 70 hours intermittent |
| Dimension | 27.2 x 12.8 x 4.75" (691 x 325 x 122 mm) |
Click on a category to view a selection of compatible accessories with the Leica 818698 ULTRA Advanced Locator.
