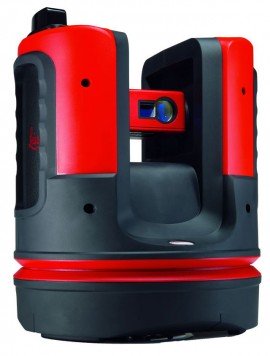

Leica 3D Disto Offers

Capture and project accurate three-dimensional measurements with this 3D disto capable of self-leveling and CAD data export. In addition, this disto features automated line and surface scans and tie distance measuring.

Features

• Range up to 164.04' (50 m)
• ± 0.03" (1 mm) tie distance accuracy at 32.8' (10 m)
• Self-levelling within 3°
• Digital Pointfinder with 8-fold zoom
• 3D measurements manually or automated
• 3D projection of CAD files
• Guided relocation integrated
• Various export formats (.dwd, .dxf, .csv, .txt)
• Li-Ion rechargeable batteries
• Cable free operation
• Powerful software for Windows devices

Measure once, cut once

No matter what you are doing with a the unit, accuracy is paramount. Since form follows function, the unit is a cross between a surveyor's robotic total station and a handheld unit.

Like a robotic total station, the unit's horizontal and vertical turning axes are motorized -- get the laser point close to the right starting point manually, aim using the video feed by tapping your target on either the control unit tablet or a Windows tablet, then watch the unit mico-adjust until the laser point is in the crosshairs.

The laser gets the glory, but to measure to 0.03" (1 mm) accuracy at 32.8' (10 m) (±1/16" accuracy at 33') the 3D Disto measures horizontal angle, vertical angle and a slope distance with angle sensors borrowed from our total stations.

Applications

• Creating CAD templates: CNC is only good as your file. This unit is the bridge between reality and CAD. When you are cutting to fit and you know your original measurements are accurate, you can cut even the most expensive materials with confidence.
• 3D visualization and navigation: The upgraded software for smart devices using Windows® now displays results in three dimensions. With the 3D navigation, it is even easier to check measured points.
• Capturing as-built measurements: The best way to eliminate surprises later in the job is to know what you are starting with. The 3D DISTO accurately captures 3D coordinates with the precision you need for planning. If your work involves expensive materials that are difficult to cut, transport or are processed off-site, you know accurate "as-built" measurements are critical.
• Building information modeling (BIM): Take DXF data directly into your Windows tablet and use the unit to layout anchor points, transfer heights or verify critical construction locations.
