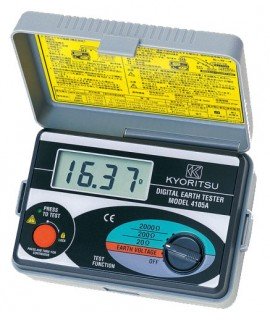

Kyoritsu 4105A Soft Case Ground Resistance Tester, Digital, 2000Ω

Downloads: datasheet manual

Small and lightweight, this ground resistance tester comes with a shock resistance case.

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMO1) for only $170.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMO1) for only $170.00 USD

Features

Dust and drip proof (designed to IEC 529 IP54)
In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories
Unit can be hung from the neck for simplified measurement
Designed to meet IEC 61010-1 safety standard
Capable of measuring earth voltage
Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance
2 mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test

Measurement Ranges	Earth Resistance: 0 to 20 Ω/0 to 200 Ω/0 to 2000 Ω Earth Voltage (50,60Hz): 0 to 200 V AC
Accuracy	Earth Resistance: ±2% rdg ±0.1Ω (20 Ω range); ±2% rdg ±3 dgt (200 Ω/2000 Ω range) Earth Voltage: ±1% rdg ±4 dgt
Overload Protection	Earth Resistance: 280 V AC for 10 seconds across 2 of the 3 terminal Earth Voltage: 300 V AC for 1 minute
Safety Standard	IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557
Applicable Standards	IEC 60529 IP54
Withstand Voltage	3700V AC for 1 minute
Power Source	6 x AA Batteries
Dimensions	4.13 x 6.22 x 2.76" (105 x 158 x 70 mm)
Weight	Approximately 1.21 lb (550 g)
