The digital clamp meter helps measure AC current, AC/DC voltage and more. The digital display makes it easy to get the readings you need.
The digital clamp meter helps measure AC current, AC/DC voltage and more. The digital display makes it easy to get the readings you need.

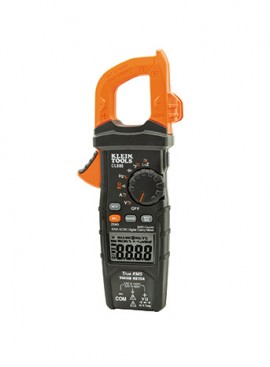

Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Features
Overall Height | 1.55" (3.9 cm) |
Drop Protection | 6.6' (2 m) |
Frequency | 1Hz to 500 KHz |
Standard | CAT IV 600V; CE Certified |
Functions | Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature. |
Voltage | 1000 V AC; 1000 V DC |
Included | Carrying Case, 41" (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries |
Capacitance | 6000 µF |
Temperature Range | -14° to 1000°F (-26° to 538°C) |
Application | Measures Current |
Ingress Protection | IP40 |
Overall Width | 3.81" (9.7 cm) |
Batteries | 2 x AAA |
Current | 600 A AC; 600 A DC |
Display | 6000 Count LCD |
Overall Length | 9.09" (23.1 cm) |
Jaw Size | 1.38" (3.5 cm) |
Special Features | Features Low Battery Indicator and Auto Shut Off |
Ohms (Resistance) | 60 MΩ |
Style Name | 600 A AC/DC, LoZ |
Weight | 12.5 oz (354 g) |
