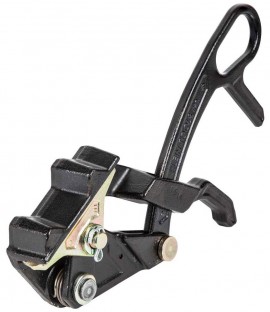

Klein Tools 16477 Wide Range Distribution Grip

Model: 16477 | UPC: 092644470721

Be the first to review this product

Klein Tools 16477 Wide Range Distribution Grip-

Downloads: datasheet

More Klein Tools Products

Ask an Expert

Klein Tools 16477 Wide Range Distribution Grip

Model: 16477 | UPC: 092644470721

Be the first to review this product

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. It is 20% lighter than Cat. No. KT4500 grip with easy, one-handed actuation.

Sale Price	$249.85 USD
Regular Price	$407.82 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Klein Tools 16477 Offers

Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Features

Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
20-Percent lighter than the Cat. No. KT4500 grip
One-handed design makes for easier actuation
Spring closes grip on cable to hold the initial position
Made in the USA
Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
Max Safe Load of 5000-Pound (2268 kg)
Patent pending design
Important Notes: Grips are to be used for temporary installation, not for permanent anchorage. When used on/or near energized lines, ground, insulate, or isolate grip before pulling. Do not exceed rated capacity. Before each use, clean jaw area and inspect grip for proper operation to avoid slippage

Klein Tools 16477 Specifications

Overall Height	1.25" (3.2 cm)
Special Features	One-Handed Grip
Locking Handle	N
Hot Latch	N
Material	Steel
Swing Latch	N
Cable Type	Bare Copper, Aluminum, ACSR
Jaw Length	3.31" (8.4 cm)
Application	Wire Pulling
Standard	—
Cable Diameter	0.162 to 0.883" (4.11 to 22.42 mm)
Type	Parallel Jaw Grip
Spring	Y
Overall Length	10" (25 cm)
Jaw Type	Round
Maximum Safe Load	5,000 lb (2,268 kg)
Overall Width	6.5" (16.5 cm)
Weight	2.9 lb (1.3 kg)

Click here for complete specifications on the Klein Tools 16477

What's included with the Klein Tools 16477

Klein Tools 16477 Wide Range Distribution Grip

datasheet for the Klein Tools 16477 Wide Range Distribution Grip

Ask a question about Klein Tools 16477 Wide Range Distribution Grip

Customer Reviews for the Klein Tools 16477

Description ➕➖

Klein Tools 16477 Offers

Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Features

Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
20-Percent lighter than the Cat. No. KT4500 grip
One-handed design makes for easier actuation
Spring closes grip on cable to hold the initial position
Made in the USA
Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
Max Safe Load of 5000-Pound (2268 kg)
Patent pending design
Important Notes: Grips are to be used for temporary installation, not for permanent anchorage. When used on/or near energized lines, ground, insulate, or isolate grip before pulling. Do not exceed rated capacity. Before each use, clean jaw area and inspect grip for proper operation to avoid slippage
