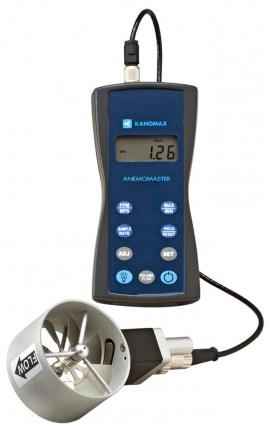

Kanomax 6825 Anemomaster Rotating Vane Anemometer with Ø2.75" probe, 40 to 3800 FPM, -22 to 212°F, 5 to 95% RH

Model: 6825

Kanomax 6825 Anemomaster Rotating Vane Anemometer with Ø2.75" probe, 40 to 3800 FPM, -22 to 212°F, 5 to 95% RH

Model: 6825

Quick and convenient, this anemometer provides accurate airflow velocity/temperature/humidity measurements in the harshest environments. In addition, it features a rugged Ø2.75" (7 cm) metal probe and vane that quickly enters duct openings, automatically stores the size in memory on turn-off, and stores and recalls up to 10 unique sizes.

Quick and convenient, this anemometer provides accurate airflow velocity/temperature/humidity measurements in the harshest environments. In addition, it features a rugged Ø2.75" (7 cm) metal probe and vane that quickly enters duct openings, automatically stores the size in memory on turn-off, and stores and recalls up to 10 unique sizes.

Regular Price $1250.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your Kanomax 6825 Anemomaster Rotating Vane Anemometer with Ø2.75" probe

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your Kanomax 6825 Anemomaster Rotating Vane Anemometer with Ø2.75" probe

Kanomax 6825 Offers

With exceptionally high accuracy airflow velocity readings, this digital anemometer is a versatile instrument for measuring air velocity in various applications. In addition, it comes with an industrial-grade enclosure and probe and automatically calculates volume flow in CFM (cubic feet per minute) or CMH (cubic meters per hour).

Features

  • High accuracy of ±1% of reading
  • 40 FPM of air velocity sensitivity
  • Temperature measurements from -22 to 212°F (-30 to 100°C)
  • Rugged metal probe and vane
  • High quality instrument which provides accurate air velocity and volume flow measurements in the harshest environments
  • Users can easily enter the size of the duct opening and the unit automatically calculates the volume flow rate from the duct
  • The duct size is automatically stored in memory on turn-off and up to 10 unique duct sizes can be stored and recalled for frequent use

Applications

  • HVAC/R testing
  • Laboratory control
  • Critical environment certification
  • IAQ investigations
  • Industrial hygiene quality control

Kanomax 6825 Specifications

Air Velocity Range: 40 to 3900 FPM (0.2 to 20 m/s)
Accuracy: ±1% of reading ±1 digit
Resolution: 1 FPM or 0.01 m/s
Temperature Range: -22 to 212°F (-30 to 100°C)
Accuracy: ±(0.3°C + 0.2% of reading in °C)
Resolution: 0.1°F or 0.1°C (1°F below -99.9°F)
Relative Humidity Range: 5 to 95% RH
Accuracy: ±2% RH
Resolution: 0.1% RH
Display 0.5" (1.27 cm) LCD, 4 digits with LED backlight
Operating Temperature Instrument: 32 to 125°F (0 to 50°C)
Probe: -4 to 212°F (-20 to 100°C)
Power Supply 3 x AA alkaline batteries
Operating time: Approximately 150 hours
Dimensions Instrument: 3.2 x 1.5 x 6.5" (8.2 x 3.8 x 16.5 cm)
Probe: Ø2.75" (7 cm)
RH/Temperature probe: Ø6 x Ø1" (15.24 x 2.54 cm)
Click here for complete specifications on the Kanomax 6825

What's included with the Kanomax 6825

  • Anemometer
  • NIST-Traceable Calibration Certificate
  • Rotating Vane Probe Head
  • Relative Humidity (RH)/Temperature Probe
  • Flexible Extension Rod
  • 3 x Rigid Extension Rods with Handle Grip
  • Probe Connection Cable
  • Hard Carrying Case
  • 3 x AA 1.5 V Alkaline Batteries (Installed)
  • Operation Manual
  • One-Year Warranty

Ask a question about Kanomax 6825 Anemomaster Rotating Vane Anemometer with Ø2.75" probe, 40 to 3800 FPM, -22 to 212°F, 5 to 95% RH

Customer Reviews for the Kanomax 6825

Kanomax 6825 Offers

With exceptionally high accuracy airflow velocity readings, this digital anemometer is a versatile instrument for measuring air velocity in various applications. In addition, it comes with an industrial-grade enclosure and probe and automatically calculates volume flow in CFM (cubic feet per minute) or CMH (cubic meters per hour).

Features

  • High accuracy of ±1% of reading
  • 40 FPM of air velocity sensitivity
  • Temperature measurements from -22 to 212°F (-30 to 100°C)
  • Rugged metal probe and vane
  • High quality instrument which provides accurate air velocity and volume flow measurements in the harshest environments
  • Users can easily enter the size of the duct opening and the unit automatically calculates the volume flow rate from the duct
  • The duct size is automatically stored in memory on turn-off and up to 10 unique duct sizes can be stored and recalled for frequent use

Applications

  • HVAC/R testing
  • Laboratory control
  • Critical environment certification
  • IAQ investigations
  • Industrial hygiene quality control

Kanomax 6825 Specifications

Air Velocity Range: 40 to 3900 FPM (0.2 to 20 m/s)
Accuracy: ±1% of reading ±1 digit
Resolution: 1 FPM or 0.01 m/s
Temperature Range: -22 to 212°F (-30 to 100°C)
Accuracy: ±(0.3°C + 0.2% of reading in °C)
Resolution: 0.1°F or 0.1°C (1°F below -99.9°F)
Relative Humidity Range: 5 to 95% RH
Accuracy: ±2% RH
Resolution: 0.1% RH
Display 0.5" (1.27 cm) LCD, 4 digits with LED backlight
Operating Temperature Instrument: 32 to 125°F (0 to 50°C)
Probe: -4 to 212°F (-20 to 100°C)
Power Supply 3 x AA alkaline batteries
Operating time: Approximately 150 hours
Dimensions Instrument: 3.2 x 1.5 x 6.5" (8.2 x 3.8 x 16.5 cm)
Probe: Ø2.75" (7 cm)
RH/Temperature probe: Ø6 x Ø1" (15.24 x 2.54 cm)
Click here for complete specifications on the Kanomax 6825

What's included with the Kanomax 6825

  • Anemometer
  • NIST-Traceable Calibration Certificate
  • Rotating Vane Probe Head
  • Relative Humidity (RH)/Temperature Probe
  • Flexible Extension Rod
  • 3 x Rigid Extension Rods with Handle Grip
  • Probe Connection Cable
  • Hard Carrying Case
  • 3 x AA 1.5 V Alkaline Batteries (Installed)
  • Operation Manual
  • One-Year Warranty
