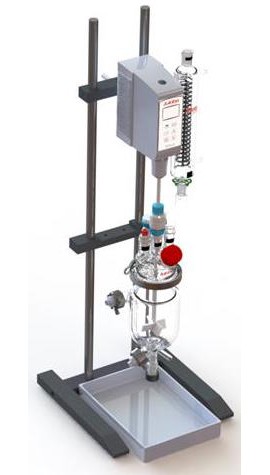

Julabo JRS.1501.04 3000mL Jacketed Glass Reaction System, 115V

Model: JRS.1501.04

Julabo JRS.1501.04 3000mL Jacketed Glass Reaction System, 115V

Model: JRS.1501.04

Julabo Reaction Solutions bench top jacketed glass reactor kit comprised of the basic components required for startup. All glassware is constructed of rugged heavy wall borosilicate glass. The reaction vessel has engineered smooth-flow 1 inch beaded pipe jacket connections for maximized thermal transfer.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

Julabo JRS.1501.04 Offers

Features

The JRS ValveTM with a unique patent pending MKSealTM allowing temperatures from +200° C to below -60° C can be added as an option.
The lid features the new and innovative angled GL45 multi-port functional powder/liquid addition and sampling port.
A high efficiency jacketed coil condenser with maximized surface, matched to the reaction volume, is supplied to handle the most demanding of applications.

Applications

For standard laboratory applications.

Julabo JRS.1501.04 Specifications

Volume	3 L
Flange Size	150mm
Valve Type	Threaded PTFE
Shaft Dia.	10mm
Shaft Length	650mm
Inlet Size	1"
Outlet Size	1"
Maximum Torque	565 Ncm
Speed Range	12 to 1800rpm
Voltage	115
Overall Diameter	24 x 18 x 42 inches
Temperature Range	-112 Degrees to 302 Degrees F

What's included with the Julabo JRS.1501.04

JRS.1602.01 H-Style Reaction Platform
JRS.1602.03 H-Style Reaction Platform, 150mm Flange Clamp
JRS.1500.06 3000mL Reactor Kit
JRS.3002.01 Stirring/Mixing, Bearing, PTFE/PEEK Seal w/ Glass Ball Bearings, 10mm Dia. Shafts, 24/40 Joints
JRS.3090.02 OHS.2 Overhead Stirrer, Reversing, LCD Display, Range 20-2000 RPM, 70 Ncm, 20000cps, 20L Max. Capacity, 120VAC60Hz
JRS.6001.01 10" x 14" Polypro Spill Tray
JRS.3003.12 Stirring/Mixing, Shaft Stirrer, PTFE, Screw propeller, 10mm dia shaft, 650mm long, 70mm O.D. rotor
