This circulator delivers strong cooling and excellent heating power for your internal or external applications. The circulator offers a temperature range of -31 to 392°F (-35 to 200°C).
This circulator delivers strong cooling and excellent heating power for your internal or external applications. The circulator offers a temperature range of -31 to 392°F (-35 to 200°C).
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

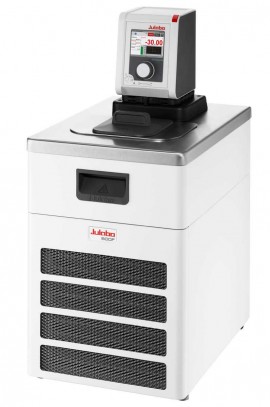

With a temperature range of -31 to 392°F (-35 to 200°C), this Julabo DD-600F DYNEO Refrigerated/Heating Circulator delivers optimal temperature control for demanding internal and external applications. The circulator features a 3.5" (8.89 cm) TFT display and a central rotary knob for simple operation.
Features
| Working Temperature Range | -31 to 392°F (-35 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.07/0.19/0.33/0.5/0.54/0.6 kW (-30/-20/-10/0/10/20 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.1 x 5.9" (12.95 x 14.99 cm) |
| Bath Depth | 5.9" (14.99 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 5 to 7.5 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 16.1" (40.89 cm) |
| Product Width | 17.3" (43.94 cm) |
| Product Height | 17.3" (43.94 cm) |
| Product Weight | 54.5 lbs (24.72 kg) |
