The recirculating cooler has been designed specifically for the semiconductor industry. The analog interface makes it easy to use.
The recirculating cooler has been designed specifically for the semiconductor industry. The analog interface makes it easy to use.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

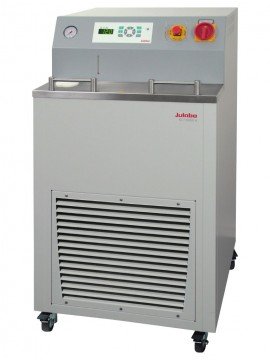

If you need a reliable unit for use in the semiconductor industry, consider the Julabo 9500101 SC10000w SemiChill Refrigerated/Heating Circulator, which features an easy-to-use control panel. The unit can be modified to suit your specific needs by selecting different electronic modules and by adding various accessories (sold separately).
Features
| Product Type | Refrigerated/heating circulator |
| Application(s) | Heating and Cooling |
| Working Temperature Range | 41 to 95°F (5 to 35°C) or optionally extended to -4 to 266°F (-20 to 130°C) |
| Heating Capacity | 5 or 12 kW (with modification) |
| Cooling Capacity | 10 kW at 68°F (20°C); 5 kW at 32°F (0°C); 2.5 kW at 14°F (-10°C); 2.4 kW at -4°F (-20°C) |
| Product Type Compatibility | DI filters, microfilters, USB adapters, etc. |
| Bath Volume | 11.1 to 15.9 gal (42 to 60 L) |
| Connector Type(s) | RS-232, Pt100 (optional) |
| Power Requirements | 230 V/3 PPE/60 Hz |
| Product Type | Refrigerated/heating circulator |
| Application(s) | Heating and Cooling |
| Working Temperature Range | 41 to 95°F (5 to 35°C) or optionally extended to -4 to 266°F (-20 to 130°C) |
| Heating Capacity | 5 or 12 kW (with modification) |
| Cooling Capacity | 10 kW at 68°F (20°C); 5 kW at 32°F (0°C); 2.5 kW at 14°F (-10°C); 2.4 kW at -4°F (-20°C) |
| Product Type Compatibility | DI filters, microfilters, USB adapters, etc. |
| Bath Volume | 11.1 to 15.9 gal (42 to 60 L) |
| Connector Type(s) | RS-232, Pt100 (optional) |
| Power Requirements | 230 V/3 PPE/60 Hz |
