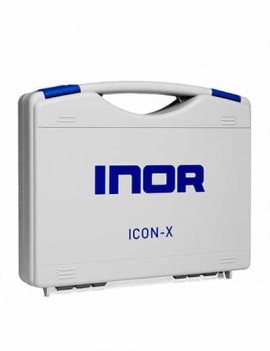

ICON-X is a complete kit for configuration of all INOR PC programmable transmitters. Communication with the connected transmitters is automatically established and configuration is done with the ConSoft software. ICON-X has built-in protection for Ex-certified transmitters. Configuration software ConSoft and installation guide can be downloaded from the download center .
ICON-X is a complete kit for configuration of all INOR PC programmable transmitters. Communication with the connected transmitters is automatically established and configuration is done with the ConSoft software. ICON-X has built-in protection for Ex-certified transmitters. Configuration software ConSoft and installation guide can be downloaded from the download center .
Features
| PC to USB Interface | USB cable type A to type B |
| USB Interface to Transmitter | Changeable adapter cables |
| Power Supply | PC´s USB port, 5 VDC, 74 mA max |
| Operation Temperature | PC´s USB port, 5 VDC, 74 mA max |
| Storage Temperature | -4 to 140°F (-20 to 70°C) |
| Humidity (non-Condensing) | 0 to 90%RH |
| Galvanic Isolation | 1500 VAC |
| System Requirements | |
| Windows | 32- or 64-bit edition of Windows XP (SP2) / Vista / 7 / 8 / 8.1 / 10 |
| Free Hard Disk Space | 185 MB |
| PC Port | 1x USB 1.1 or higher port type A |
| EX Data | |
| 0539 II (1)g [ex Ia Ga] IIC | Uo: 9.4 V |
| KIWA 16ATEX0011X | Io: 96 mA |
| IECEx KIWA 16.0005x | Po: 0.68 W |
| USA FM18US0117X | Um: 250 VAC/DC |
| Canada FM18CA0056X | AIS CL I, Div 1 and 2, GP A-D, CL I, Zn 0,1 and 2 [AEx/Ex ia Ga] IIC |
| PC to USB Interface | USB cable type A to type B |
| USB Interface to Transmitter | Changeable adapter cables |
| Power Supply | PC´s USB port, 5 VDC, 74 mA max |
| Operation Temperature | PC´s USB port, 5 VDC, 74 mA max |
| Storage Temperature | -4 to 140°F (-20 to 70°C) |
| Humidity (non-Condensing) | 0 to 90%RH |
| Galvanic Isolation | 1500 VAC |
| System Requirements | |
| Windows | 32- or 64-bit edition of Windows XP (SP2) / Vista / 7 / 8 / 8.1 / 10 |
| Free Hard Disk Space | 185 MB |
| PC Port | 1x USB 1.1 or higher port type A |
| EX Data | |
| 0539 II (1)g [ex Ia Ga] IIC | Uo: 9.4 V |
| KIWA 16ATEX0011X | Io: 96 mA |
| IECEx KIWA 16.0005x | Po: 0.68 W |
| USA FM18US0117X | Um: 250 VAC/DC |
| Canada FM18CA0056X | AIS CL I, Div 1 and 2, GP A-D, CL I, Zn 0,1 and 2 [AEx/Ex ia Ga] IIC |
