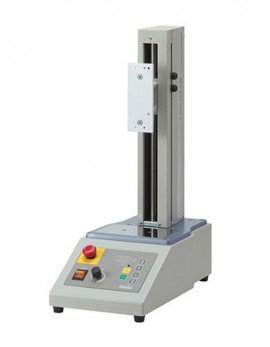

Imada MX-275-S Vertical Motorized Test Stand with Digital Distance Meter, 275 lbf

Model: MX-275-S

Imada MX-275-S Vertical Motorized Test Stand with Digital Distance Meter, 275 lbf-

More IMADA Products

Ask an Expert

Imada MX-275-S Vertical Motorized Test Stand with Digital Distance Meter, 275 lbf

Model: MX-275-S

Offers basic force testing capabilities such as adjustable test speed control, force control, quick return and emergency stop functionality. Can be used for both tension and compression testing.

Offers basic force testing capabilities such as adjustable test speed control, force control, quick return and emergency stop functionality. Can be used for both tension and compression testing.

Your Price $6275.00 USD
Availability 1 Week
Quantity

Imada MX-275-S Offers

The high performance brushless motor provides extremely smooth operation. Many speed configurations are available to fit any force testing application, see the speed configuration tab for more details. Include four modes of operation: Manual, Single Cycle, Continuous Cycle (72 hours max), and Force Control modes.

Features

  • One stand for both compression (push) and tension (pull) tests
  • High performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
  • Manual, Single Cycle, Continuous Cycle (72 hour max.), Force Control modes
  • Force Controlled operation with Imada ZT Series force gauges and Force Control cable
  • Includes optional digital distance meter
  • Conditional Overload Prevention with Force Control cable

Imada MX-275-S Specifications

Test Stand Specifications
Speed Configuration 0.4 to 9.4"/min (8 to 240 mm/min) Standard
Capacity 275 lbf
Stroke 410 mm (16.1")
Distance Meter Specifications
Display Push button for inch/mm, zero set and on/off
Resolution 0.0005"/0.01 mm
Accuracy ±0.01"/0.2mm

What's included with the IMADA MX-275-S

  • Imada MX-275-S Vertical Motorized Test Stand with Digital Distance Meter, 275 lbf
