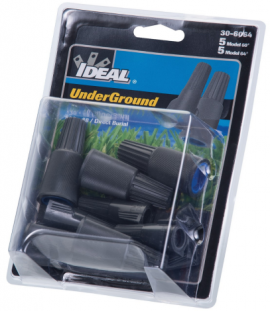

IDEAL Industries 30-6064 UnderGround Wire Connectors, 60/64, 10-pack (5 of each)

Model: 30-6064 | UPC: 783250758173

Be the first to review this product

IDEAL Industries 30-6064 UnderGround Wire Connectors, 60/64, 10-pack (5 of each)-

Downloads: datasheet manual

More IDEAL Industries Products

Ask an Expert

IDEAL Industries 30-6064 UnderGround Wire Connectors, 60/64, 10-pack (5 of each)

Model: 30-6064 | UPC: 783250758173

Be the first to review this product

IDEAL® UnderGround™ Wire Connectors are designed to secure and protect connections in a wide variety of below grade, wet location and direct burial applications, including Quazite® boxes. Quick and easy installation saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.

Sale Price	$30.00 USD
Regular Price	$139.60 USD
Availability	2 to 3 Weeks
Quantity	Quantity

IDEAL Industries 30-6064 Offers

Features

Pre-filled with 100% silicone-based sealant to protect against moisture and corrosion
Designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications
Expanding, live-action square-wire spring for fast, secure and long-lasting connections
Deep skirt provides superior moisture resistance to protect connections
Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.
Tough, flame-retardant, thermoplastic shell helps protect against accidental impacts
Model 60® can be used on conductors from #20 to #10 AWG, in combinations from minimum 1 #20 with 1 #18 AWG to maximum 1 #10 with 2 #12 AWG
Model 64® can be used on conductors from #18 to #8 AWG, in combinations from minimum 2 #18 AWG to maximum 3 #10 AWG
NOTE: Designed for single-use only - do not reuse the connector

IDEAL Industries 30-6064 Specifications

Termination Method	Twist-on
Quantity	Pack of 10
Maximum Rated Voltage	600 V
Maximum Temperature (C)	105°C
Maximum Wire Gauge	8 AWG
Minimum Wire Gauge	20 AWG
Wire Type	Solid, Stranded
Warranty	Limited 1 Year
Colour	Multicolor
Flexible Skirt	No

Click here for complete specifications on the IDEAL Industries 30-6064

What's included with the IDEAL Industries 30-6064

IDEAL Industries 30-6064 UnderGround Wire Connectors, 60/64, 10-pack (5 of each)

Brochure IDEAL Industries 30-6064 Bonus Content Brochure IDEAL Industries 30-6064 Warranty datasheet for the IDEAL Industries 30-6064 UnderGround Wire Connectors, 60/64, 10-pack (5 of each) datasheet for the IDEAL Industries 30-6064 UnderGround Wire Connectors, 60/64, 10-pack (5 of each) manual for the IDEAL Industries 30-6064 UnderGround Wire Connectors, 60/64, 10-pack (5 of each)

Ask a question about IDEAL Industries 30-6064 UnderGround Wire Connectors, 60/64, 10-pack (5 of each)

Customer Reviews for the IDEAL Industries 30-6064

Description ➕➖

IDEAL Industries 30-6064 Offers

Features

Pre-filled with 100% silicone-based sealant to protect against moisture and corrosion
Designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications
Expanding, live-action square-wire spring for fast, secure and long-lasting connections
Deep skirt provides superior moisture resistance to protect connections
Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.
Tough, flame-retardant, thermoplastic shell helps protect against accidental impacts
Model 60® can be used on conductors from #20 to #10 AWG, in combinations from minimum 1 #20 with 1 #18 AWG to maximum 1 #10 with 2 #12 AWG
Model 64® can be used on conductors from #18 to #8 AWG, in combinations from minimum 2 #18 AWG to maximum 3 #10 AWG
NOTE: Designed for single-use only - do not reuse the connector

Specifications ➕➖

IDEAL Industries 30-6064 Specifications

Termination Method	Twist-on
Quantity	Pack of 10
Maximum Rated Voltage	600 V
Maximum Temperature (C)	105°C
Maximum Wire Gauge	8 AWG
Minimum Wire Gauge	20 AWG
Wire Type	Solid, Stranded
Warranty	Limited 1 Year
Colour	Multicolor
Flexible Skirt	No
