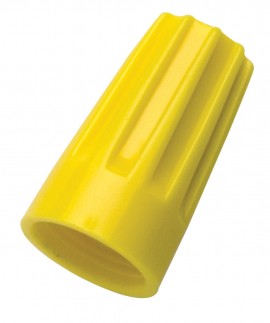

Twist-on connector with a fixed square-wire spring that forms secure threads and housed in a flame-retardant polypropylene shell rated to 221°F (105°C). Designed for copper conductor combinations ranging from 18 to 12 AWG (0.64 to 2.05 mm) and rated up to 600 V. Yellow-coded, reusable, UL 486C / CSA C22.2 No 188 certified, and ideal for fine-stranded wire applications.
Twist-on connector with a fixed square-wire spring that forms secure threads and housed in a flame-retardant polypropylene shell rated to 221°F (105°C). Designed for copper conductor combinations ranging from 18 to 12 AWG (0.64 to 2.05 mm) and rated up to 600 V. Yellow-coded, reusable, UL 486C / CSA C22.2 No 188 certified, and ideal for fine-stranded wire applications.
First introduced in 1928, IDEAL® Wire-Nut® wire connectors set the bar for quality and convenience. A fixed, square-cut spring, and a tough, flame-retardant shell, provide a secure connection that lasts. Twisting by hand is a breeze thanks to the positive grip design that is also compatible with IDEAL® Twist-a-Nut® screwdrivers for additional ease and speed. Its wide wire range is suitable for a variety of applications and is an ideal choice when working with fine stranded wire. The original Wire-Nut®, still an industry standard today.
Features
| Termination Method | Twist-on |
| Maximum Rated Voltage | 600 V |
| Maximum Temperature | 221°F (105°C) |
| Maximum Wire Gauge | 12 AWG |
| Minimum Wire Gauge | 18 AWG |
| Wire Type | Solid, Stranded |
| Warranty | Limited 1 Year |
| Colour | Yellow |
| Flexible Skirt | No |
| Termination Method | Twist-on |
| Maximum Rated Voltage | 600 V |
| Maximum Temperature | 221°F (105°C) |
| Maximum Wire Gauge | 12 AWG |
| Minimum Wire Gauge | 18 AWG |
| Wire Type | Solid, Stranded |
| Warranty | Limited 1 Year |
| Colour | Yellow |
| Flexible Skirt | No |
