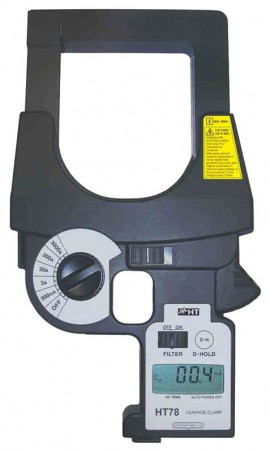

HT Instruments HT78 AC TRMS Leakage Clamp for Big Cables

Model: HT78

Be the first to review this product

This meter permits to measure up to 3000A and, with its large jaws, clamp cables and/or bars of wide sizes. Compliant to IEC/EN61010-1 safety standard in CAT II 600V, CAT III 300V.

Your Price	$1765.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your HT78 AC TRMS Leakage Clamp for Big Cables

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Traceable Calibration Certificate for your HT78 AC TRMS Leakage Clamp for Big Cables

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

HT Instruments HT78 Offers

Features

AC current up to 3000 A TRMS
Minimum resolution for AC leakage current measurement: 0.1 mA
150 Hz low pass filter
DCV analogical output for external data loggers
Data HOLD
Manual range
"LOCK" function for blocking jaws
Wide conductor size (108 mm)
Auto power off

Applications

Solve typical problems of RCD's accidentally tripping
Plant maintenance
Electronic equipment

HT Instruments HT78 Specifications

AC Current (TRMS)
Range	300 mA, 3, 30, 300, 3000 A
Resolution	0.1 mA, 0.001, 0.01, 0.1, 1 A
Accuracy (50 to 60 Hz)	300 mA, 3, 30, 300 A: ±(1.5%rdg + 8dgt) 3000 A: ±(2.0%rdg + 8dgt)
Max Input Current	300 mA: 3 A rms 3 A: 30 A rms 30 A: 300 A rms 300, 3000 A: 3000 A rms
DC Analogical Output
Range	300 mA, 3, 30, 300, 3000 A
Ratio	300 mA: 1 mV/1 mA 3 A: 1 mV/0.01 A 30 A: 1 mV/0.1 A 300 A: 1 mV/1 A 3000 A: 1 mV/10 A
Accuracy (50 to 60 Hz)	±1.5%FS
Max Input Current	300 mA: 3 A rms 3 A: 30 A rms 30 A: 300 A rms 300, 3000 A: 3000 A rms
General Specifications
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 140°F (-10 to 60°C)

Click here for complete specifications on the HT Instruments HT78

What's included with the HT Instruments HT78

AC TRMS Leakage Clamp for Big Cables
Carrying Bag
2 x 1.5 V Batteries
Set of Belt Straps
User Manual

datasheet for the HT Instruments HT78 AC TRMS Leakage Clamp for Big Cables manual for the HT Instruments HT78 AC TRMS Leakage Clamp for Big Cables
