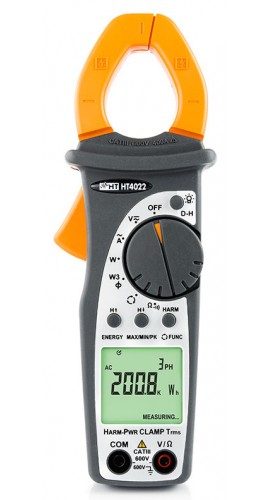

HT Instruments HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

Model: HT4022

Be the first to review this product

HT Instruments HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements-

Downloads: datasheet manual

More HT Instruments Products

Ask an Expert

HT Instruments HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

Model: HT4022

Be the first to review this product

Measure single and three phase systems and with this meter that takes AC Current, AC/DC Voltage, frequency, resistance and continuity measurements. Perform measures of active, reactive, apparent power and power factor.

Your Price	$495.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM2) for only $160.00 USD

Traceable Calibration Certificate for your HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM2) for only $160.00 USD

HT Instruments HT4022 Offers

Features

AC TRMS current up to 400 A
DC/AC TRMS voltage up to 600 V
Resistance and continuity test
Frequency with test leads
Frequency with jaws
Phase rotation Coincidence and with 1 wire
Active, reactive, apparent power on single-phase and balanced three phase systems
Power factor measure on single-phase and balanced three phase systems
Active, reactive, apparent energy on single-phase and balanced three phase systems
Harmonic voltage/current up to 25th with THD%
Autorange
Backlight
Auto power off
Data hold
Low battery indication

Applications

Plant maintenance
Industrial troubleshooting
Non-Linear loads
Frequency driven motors
PCs

HT Instruments HT4022 Specifications

DC Voltage
Range	1.6 to 599.9 V
Resolution	0.1 V
Accuracy	±(1.0%rdg + 3gt)
Overload Protection	600 V RMS
AC Voltage (TRMS)
Range	1.6 to 599.9 V
Resolution	0.1 V
Accuracy	40 to 200 Hz: ±(1.0%rdg + 3gt) 200 to 400 Hz: ±(5.0%rdg + 3gt)
Overload Protection	600 V RMS
AC Current (TRMS)
Range	0.0 to 399.9 A
Resolution	0.1 A
Accuracy	40 to 200 Hz: ±(1.0%rdg + 3gt) 200 to 400 Hz: ±(5.0%rdg + 3gt)
Overload Protection	600 A RMS

Click here for complete specifications on the HT Instruments HT4022

What's included with the HT Instruments HT4022

AC TRMS Clamp Meter
Calibration Certificate
Couple of Test Leads
Couple of Alligator Clips
Rubber Cup for Test Lead Holder
2 x 1.5 V Batteries
Carrying Bag
Manual

datasheet for the HT Instruments HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements manual for the HT Instruments HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

Ask a question about HT Instruments HT4022 AC TRMS Clamp Meter with Power/Harmonic Measurements

Customer Reviews for the HT Instruments HT4022

Description ➕➖

HT Instruments HT4022 Offers

Features

AC TRMS current up to 400 A
DC/AC TRMS voltage up to 600 V
Resistance and continuity test
Frequency with test leads
Frequency with jaws
Phase rotation Coincidence and with 1 wire
Active, reactive, apparent power on single-phase and balanced three phase systems
Power factor measure on single-phase and balanced three phase systems
Active, reactive, apparent energy on single-phase and balanced three phase systems
Harmonic voltage/current up to 25th with THD%
Autorange
Backlight
Auto power off
Data hold
Low battery indication

Applications

Plant maintenance
Industrial troubleshooting
Non-Linear loads
Frequency driven motors
PCs

Specifications ➕➖

HT Instruments HT4022 Specifications

DC Voltage
Range	1.6 to 599.9 V
Resolution	0.1 V
Accuracy	±(1.0%rdg + 3gt)
Overload Protection	600 V RMS
AC Voltage (TRMS)
Range	1.6 to 599.9 V
Resolution	0.1 V
Accuracy	40 to 200 Hz: ±(1.0%rdg + 3gt) 200 to 400 Hz: ±(5.0%rdg + 3gt)
Overload Protection	600 V RMS
AC Current (TRMS)
Range	0.0 to 399.9 A
Resolution	0.1 A
Accuracy	40 to 200 Hz: ±(1.0%rdg + 3gt) 200 to 400 Hz: ±(5.0%rdg + 3gt)
Overload Protection	600 A RMS
