Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel

Model: U12-012

Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel-

Downloads: datasheet manual

More Onset HOBO Products

Ask an Expert

Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel

Model: U12-012

Measure temperature, relative humidity, light intensity, and more. Store up to 43,000 measurements for long-term deployments or fast sampling.

Measure temperature, relative humidity, light intensity, and more. Store up to 43,000 measurements for long-term deployments or fast sampling.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Onset HOBO MX1104 Analog/Temperature/RH/Light Data Logger, -4 to 158°F-

Onset HOBO MX1104 Analog/Temperature/RH/Light Data Logger, -4 to 158°F

Model: MX1104

Measure and transmit temperature, relative humidity, and light intensity data wirelessly with this analog/temperature/RH/light data logger that features one analog input. In addition, calculate minimum, maximum, average, and standard deviation statistics with this logger.

Learn More

Recommended Accessories

Onset HOBO CABLE-2.5-STEREO DC Voltage Input Sensor Cable, 0 to 2.5 V DC-

Onset HOBO CABLE-2.5-STEREO DC Voltage Input Sensor Cable, 0 to 2.5 V DC

CABLE-2.5-STEREO

Onset HOBO CABLE-ADAP10 DC Voltage Input Sensor Cable, 0 to 10 V-

Onset HOBO CABLE-ADAP10 DC Voltage Input Sensor Cable, 0 to 10 V

CABLE-ADAP10

Onset HOBO CABLE-ADAP24 DC Voltage Input Sensor Cable, 0 to 24 V-

Onset HOBO CABLE-ADAP24 DC Voltage Input Sensor Cable, 0 to 24 V

CABLE-ADAP24

Onset HOBO CABLE-ADAP5 DC Voltage Input Sensor Cable, 0 to 5 V-

Onset HOBO CABLE-ADAP5 DC Voltage Input Sensor Cable, 0 to 5 V

CABLE-ADAP5

Onset HOBO CABLE-4-20MA Input Sensor Connector, 4-20 mA-

Onset HOBO CABLE-4-20MA Input Sensor Connector, 4-20 mA

CABLE-4-20MA

HOBO Data Loggers U12-012 Offers

HOBOware Pro software (USB interface cable included with CD purchase) and communications device is required.

Features

  • Large memory for long-term deployments or fast sampling
  • Programmable and push button start
  • Direct USB interface for fast data offload
  • Compatible with Onset's HOBO U-Shuttle for convenient data transport
  • Compatible with HOBOware and HOBOware Pro for logger setup, graphing and analysis
  • Operates in an indoor environment

HOBOware

With the latest version of software (HOBOware 3.7.8), Optic Base Station and Waterproof Shuttle users will find much-improved communications methods.

For Mac users - Updating to apple's latest operating system (OS X 10.11.5) will remedy any communications issues you might have encountered with the HOBO U30 Weather Station and the Waterproof Shuttle.

HOBOmobile

HOBOmobile 1.5 for iOS can now push data to HOBOlink.com for free online data storage.

Download the Mobile App

HOBO Data Loggers U12-012 Specifications

Measurement Range
Temperature -20° to 70°C (-4° to 158°F)
RH 5% to 95% RH
Light intensity 1 to 3000 footcandles (lumens/ft2) typical; maximum value varies from 1500 to 4500 footcandles (lumens/ft2)
Analog channels 0 to 2.5 Vdc (w/CABLE-2.5-STEREO); 0 to 5 Vdc (w/CABLE-ADAP5); 0 to 10 Vdc (w/ CABLE-ADAP10); 4-20 mA (w/CABLE-4-20MA)
Accuracy
Temperature ± 0.35°C from 0° to 50°C (± 0.63°F from 32° to 122°F), see Plot A
RH ±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5%, see Plot B

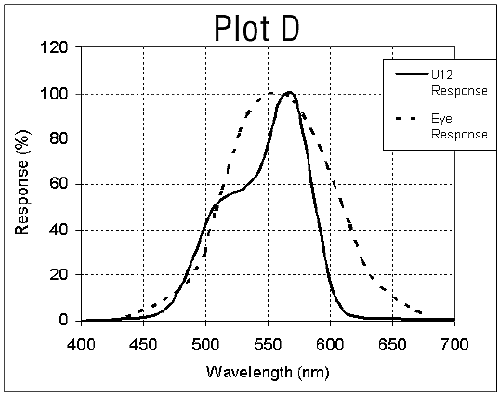

Light intensity Designed for indoor measurement of relative light levels, see Plot D for light wavelength response
External input channel (see sensor manual) ± 2 mV ± 2.5% of absolute reading
Resolution
Temperature 0.03°C at 25°C (0.05°F at 77°F), see Plot A
RH 0.03% RH
Light intensity Designed for indoor measurement of relative light levels, see Plot D for light wavelength response
External input channel (see sensor manual) ± 2 mV ± 2.5% of absolute reading
Click here for complete specifications on the Onset HOBO U12-012

What's included with the HOBO Data Loggers U12-012

  • Temperature/Relative Humidity/Light/External Data Logger
  • Mounting kit with magnet, hook and loop tape, tie-wrap mount, tie wrap, and two screws.
datasheet for the Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel manual for the Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel

Click on a category to view a selection of compatible accessories with the Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel.

Onset HOBO BHW-PRO-USB Onset HOBOware Pro Software Compatible with Mac and Windows BHW-PRO-USB
Simple and easy to use point and click interface. This software is compatible with all HOBO data loggers and wireless data nodes. USB Cable included.



Onset HOBO CABLE-USBMB USB Cable CABLE-USBMB
USB data logger to PC communications cable is 6 feet long and is coated in black plastic.



Onset HOBO CABLE-2.5-STEREO DC Voltage Input Sensor Cable, 0 to 2.5 V DC CABLE-2.5-STEREO
For use with UX120 and U12 Series. External input cable providing analog sensor input in the range of range 0 to 2.5 VDC. The cable has 0.5" (13mm) tinned braided wire leads and a total length 6 '. (1.8m).



Onset HOBO CABLE-ADAP10 DC Voltage Input Sensor Cable, 0 to 10 V CABLE-ADAP10
For use with UX120 and U12 Series. External input cable providing analog sensor input in the range of range 0 to 10 VDC. The cable has 0.5" (13mm) tinned braided wire leads and a total length 6 '. (1.8m).



Onset HOBO CABLE-ADAP24 DC Voltage Input Sensor Cable, 0 to 24 V CABLE-ADAP24
For use with UX120 and U12 Series. External input cable providing analog sensor input in the range of range 0 to 24 VDC. The cable has 0.5" (13mm) tinned braided wire leads and a total length 6 '. (1.8m).



Onset HOBO CABLE-ADAP5 DC Voltage Input Sensor Cable, 0 to 5 V CABLE-ADAP5
For use with UX120 and U12 Series. External input cable providing analog sensor input in the range of range 0 to 5 VDC. The cable has 0.5" (13mm) tinned braided wire leads and a total length 6 '. (1.8m).



Onset HOBO CABLE-4-20MA Input Sensor Connector, 4-20 mA CABLE-4-20MA
Cable for connecting a sensor with a 4-20mA output to U12 and UX120 series to expand the range of measurement options and applications. Plug directly into the external jacks of the data logger.



Ask a question about Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel

Customer Reviews for the Onset HOBO U12-012

HOBO Data Loggers U12-012 Offers

HOBOware Pro software (USB interface cable included with CD purchase) and communications device is required.

Features

  • Large memory for long-term deployments or fast sampling
  • Programmable and push button start
  • Direct USB interface for fast data offload
  • Compatible with Onset's HOBO U-Shuttle for convenient data transport
  • Compatible with HOBOware and HOBOware Pro for logger setup, graphing and analysis
  • Operates in an indoor environment

HOBOware

With the latest version of software (HOBOware 3.7.8), Optic Base Station and Waterproof Shuttle users will find much-improved communications methods.

For Mac users - Updating to apple's latest operating system (OS X 10.11.5) will remedy any communications issues you might have encountered with the HOBO U30 Weather Station and the Waterproof Shuttle.

HOBOmobile

HOBOmobile 1.5 for iOS can now push data to HOBOlink.com for free online data storage.

Download the Mobile App

Show More...

HOBO Data Loggers U12-012 Specifications

Measurement Range
Temperature -20° to 70°C (-4° to 158°F)
RH 5% to 95% RH
Light intensity 1 to 3000 footcandles (lumens/ft2) typical; maximum value varies from 1500 to 4500 footcandles (lumens/ft2)
Analog channels 0 to 2.5 Vdc (w/CABLE-2.5-STEREO); 0 to 5 Vdc (w/CABLE-ADAP5); 0 to 10 Vdc (w/ CABLE-ADAP10); 4-20 mA (w/CABLE-4-20MA)
Accuracy
Temperature ± 0.35°C from 0° to 50°C (± 0.63°F from 32° to 122°F), see Plot A
RH ±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5%, see Plot B
Light intensity Designed for indoor measurement of relative light levels, see Plot D for light wavelength response
External input channel (see sensor manual) ± 2 mV ± 2.5% of absolute reading
Resolution
Temperature 0.03°C at 25°C (0.05°F at 77°F), see Plot A
RH 0.03% RH
Light intensity Designed for indoor measurement of relative light levels, see Plot D for light wavelength response
External input channel (see sensor manual) ± 2 mV ± 2.5% of absolute reading
Click here for complete specifications on the Onset HOBO U12-012

What's included with the HOBO Data Loggers U12-012

  • Temperature/Relative Humidity/Light/External Data Logger
  • Mounting kit with magnet, hook and loop tape, tie-wrap mount, tie wrap, and two screws.
datasheet for the Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel manual for the Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel

Click on a category to view a selection of compatible accessories with the Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel.

Onset HOBO BHW-PRO-USB Onset HOBOware Pro Software Compatible with Mac and Windows BHW-PRO-USB
Simple and easy to use point and click interface. This software is compatible with all HOBO data loggers and wireless data nodes. USB Cable included.



Onset HOBO CABLE-USBMB USB Cable CABLE-USBMB
USB data logger to PC communications cable is 6 feet long and is coated in black plastic.



Onset HOBO CABLE-2.5-STEREO DC Voltage Input Sensor Cable, 0 to 2.5 V DC CABLE-2.5-STEREO
For use with UX120 and U12 Series. External input cable providing analog sensor input in the range of range 0 to 2.5 VDC. The cable has 0.5" (13mm) tinned braided wire leads and a total length 6 '. (1.8m).



Onset HOBO CABLE-ADAP10 DC Voltage Input Sensor Cable, 0 to 10 V CABLE-ADAP10
For use with UX120 and U12 Series. External input cable providing analog sensor input in the range of range 0 to 10 VDC. The cable has 0.5" (13mm) tinned braided wire leads and a total length 6 '. (1.8m).



Onset HOBO CABLE-ADAP24 DC Voltage Input Sensor Cable, 0 to 24 V CABLE-ADAP24
For use with UX120 and U12 Series. External input cable providing analog sensor input in the range of range 0 to 24 VDC. The cable has 0.5" (13mm) tinned braided wire leads and a total length 6 '. (1.8m).



Onset HOBO CABLE-ADAP5 DC Voltage Input Sensor Cable, 0 to 5 V CABLE-ADAP5
For use with UX120 and U12 Series. External input cable providing analog sensor input in the range of range 0 to 5 VDC. The cable has 0.5" (13mm) tinned braided wire leads and a total length 6 '. (1.8m).



Onset HOBO CABLE-4-20MA Input Sensor Connector, 4-20 mA CABLE-4-20MA
Cable for connecting a sensor with a 4-20mA output to U12 and UX120 series to expand the range of measurement options and applications. Plug directly into the external jacks of the data logger.



Ask a question about Onset HOBO U12-012 Temperature/Humidity/Light Data Logger with 1 ext. channel

Customer Reviews for the Onset HOBO U12-012
