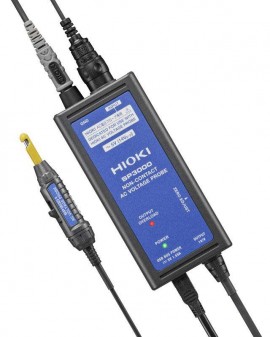

Hioki SP3000-01 Non-Contact AC Voltage Probe, 30Vrms

Model: SP3000-01

Hioki SP3000-01 Non-Contact AC Voltage Probe, 30Vrms

Model: SP3000-01

Use this voltage probe to measure signals on insulated wires when maintaining device control signals and sensor signals. The non-contact design lets you observe waveforms on oscilloscopes and memory recorders without removing the insulation.

Your Price	$1264.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Hioki SP3000-01 Offers

With this Hioki SP3000-01 Non-Contact AC Voltage Probe, electricians can safely measure signals on insulated wires without being exposed to an electrocution risk. The probe is compatible with Hioki Memory HiCorders and oscilloscopes and makes it easy to observe waveforms.

Features

Capture the electrical signal by applying the probe to the cable's outside insulation cover for safe measurements
Compatible with an oscilloscope or an Hioki Memory HiCorder (sold separately)
Ideal for analyzing signals from electrical equipment and communication lines
Captures LIN and other communication signals
Great for use where the miniaturization of devices or the use of waterproof connectors makes it impossible to remove make contact with metal terminals
CE-compliant design

Hioki SP3000-01 Specifications

Measurement Method	Voltage Probe SP9001: capacitive-coupled current cancellation
Measurable Wire Type	Insulated wire
Maximum Input Voltage	30 Vrms, 42.4V peak
Rated Measurement Voltage	5 Vrms (14.14Vp-p)
Output Rate	1 V/V
Rising Time	4.5 μs or less
Frequency Band	10 Hz to 100 kHz (-3 dB)
Voltage Measurement Precision	±2.5% of reading ±1% full scale (0.5 to 5 Vrms)
Effects of Wire Under Measurement	±5% of reading (φ1 to 2.5 mm finished outer diameter in a wire rod in conformity with UL1007, UL1015, AV, AVS, AVSS)
Output Terminal	Insulated BNC (with 50 Ω output resistance)
Power Supply	5 V/±0.25 VDC USB mini, 5 VDC 2.6A Z1013 AC adapter
Rated Supply Voltage	100 to 240 VAC (50/60 Hz)
Product Length	2.16" (55 mm) amplifier box, 3.05" (77.4 mm) probe head
Product Width	4.72" (120 mm) amplifier box, 0.59" (15 mm) probe head
Product Height	0.98" (25 mm) amplifier box, 0.55" (13.9 mm) probe head
Product Weight	5.64 oz (160 g) amplifier box, 1.83 oz (52 g) probe head

What's included with the Hioki SP3000-01

SP3000 Amplifier Box
SP9001 Probe
Alligator Clip
4.92ft (1.5m) Ground Connection Cable
USB Cable
Instruction Manual
