A sound level meter is used in noise management by facilitating the measurement of noise in factories and schools, near machinery, etc., to ensure a more comfortable environment. Small enough to fit in a pocket and weighing just 105 g, the instrument measures sound level, equivalent continuous sound level, sound exposure level, maximum sound level, and C-weighted peak sound level.
A sound level meter is used in noise management by facilitating the measurement of noise in factories and schools, near machinery, etc., to ensure a more comfortable environment. Small enough to fit in a pocket and weighing just 105 g, the instrument measures sound level, equivalent continuous sound level, sound exposure level, maximum sound level, and C-weighted peak sound level.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Sound Level Meters category for similar products.
Or let's do a search and help you find what you need:

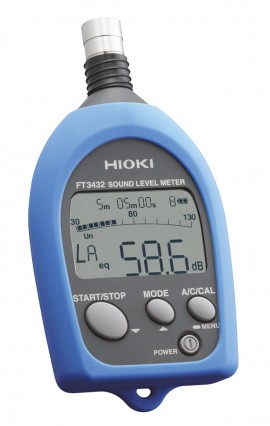

The Hioki FT3432 sound level meter is used in noise management by facilitating the measurement of noise in factories and schools, near machinery, etc., to ensure a more comfortable environment. Small enough to fit in a pocket and weighing just 105 g, the instrument measures sound level, equivalent continuous sound level, sound exposure level, maximum sound level, and C-weighted peak sound level.
Features
| Measurement Functions | Sound level Equivalent continuous sound level Sound exposure level Maximum Sound level C weighting peak sound level (measurement possible only when peak range is selected) |
| Measurement Times | 1/5/10 minutes, or 1 hour |
| Frequency Weighting Characteristics | A Weighting C Weighting |
| Wide Measurement Level Range | A Weighting: 30 to 137 dB C Weighting: 36 to 137 dB |
| Peak Measurement Level Range | A Weighting: 65 to 137 dB C Weighting: 65 to 137 dB |
| Frequency Range | 20 to 8000 Hz |
| Microphone | 1/2" electret condenser microphone |
| Time Weighting Characteristics | Fast or Slow |
| Functions | Storing processing results (Storing capacity: 199 pieces of data) Warning indications Bar graph |
| DC Output | DC Output Connector: 3 V (full scale), 25 mV/dB Output impedance: 50 Ω |
| AC Output | AC Monitor Output Connector: 1 Vrms 600 mVrms, -400 mVrms (at 110 dB) (Upper limit: 1.8 Vrms) Output Impedance: 600 Ω |
| Frequency Weighting Characteristics | Z Weighting |
| Power Supply | 2 x LR03 AAA alkaline battery Continuous use 9 hr at wide range 2 x R03 AAA manganese battery Continuous use 3 hr at wide range Consumption: 80 mA |
| Dimensions | 2.48 x 4.72 x 0.93" (63 x 120 x 23.5 mm) |
| Weight (Including Batteries) | 105 g (3.7 oz) |
| Applicable Standards | IEC 61672-1: 2013 Class 2 JIS C 1509-1: 2005 Class 2 JIS C 1516: 2014 Class 2 |
| Measurement Functions | Sound level Equivalent continuous sound level Sound exposure level Maximum Sound level C weighting peak sound level (measurement possible only when peak range is selected) |
| Measurement Times | 1/5/10 minutes, or 1 hour |
| Frequency Weighting Characteristics | A Weighting C Weighting |
| Wide Measurement Level Range | A Weighting: 30 to 137 dB C Weighting: 36 to 137 dB |
| Peak Measurement Level Range | A Weighting: 65 to 137 dB C Weighting: 65 to 137 dB |
| Frequency Range | 20 to 8000 Hz |
| Microphone | 1/2" electret condenser microphone |
| Time Weighting Characteristics | Fast or Slow |
| Functions | Storing processing results (Storing capacity: 199 pieces of data) Warning indications Bar graph |
| DC Output | DC Output Connector: 3 V (full scale), 25 mV/dB Output impedance: 50 Ω |
| AC Output | AC Monitor Output Connector: 1 Vrms 600 mVrms, -400 mVrms (at 110 dB) (Upper limit: 1.8 Vrms) Output Impedance: 600 Ω |
| Frequency Weighting Characteristics | Z Weighting |
| Power Supply | 2 x LR03 AAA alkaline battery Continuous use 9 hr at wide range 2 x R03 AAA manganese battery Continuous use 3 hr at wide range Consumption: 80 mA |
| Dimensions | 2.48 x 4.72 x 0.93" (63 x 120 x 23.5 mm) |
| Weight (Including Batteries) | 105 g (3.7 oz) |
| Applicable Standards | IEC 61672-1: 2013 Class 2 JIS C 1509-1: 2005 Class 2 JIS C 1516: 2014 Class 2 |
