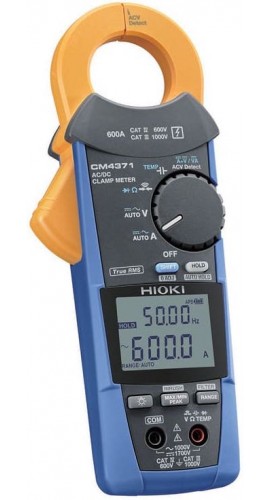

Hioki CM4371 AC/DC True RMS Clamp Meter, 600 A

Model: CM4371-90

Be the first to review this product

Use this clamp meter to measure the AC/DC current of wires and devices. The versatile tool can measure voltage, amperage, resistance and frequency.

Your Price	$403.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your CM4371-90 AC/DC True RMS Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Traceable Calibration Certificate for your CM4371-90 AC/DC True RMS Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Hioki CM4371-90 Offers

This Hioki CM4371 AC/DC True RMS Clamp Meter is designed to measure AC voltage up to 1,000 V and DC voltage up to 1,700 V, as well as AC/DC current up to 600 A. The dustproof and waterproof enclosure adds to the durability. Plus, you can measure inrush current in RMS and crest values simultaneously.

Features

Ideal for the development, repair and maintenance of equipment and devices, including electric vehicles
Performs a variety of measurement functions
Capable of measuring DC voltages up to 1,700 V and AC voltages up to 1,000 V, as well as AC/DC current from 20 to 600 A
Tests resistance from 600 Ω to 600k Ω and a frequency range of 9.999 to 999.9 Hz
Features an IP54 dustproof and waterproof enclosure and IP50-rated jaws
Use the auto hold feature to freeze the results on the display until the next measurement starts
Can detect the full startup current period and identify the RMS waveform
Notifies you with a buzzer and red LED if a short circuit is detected
Additional functions include plus/minus judgment function of DC A and DC V, max/min/average/peak max/peak min value display, filter, auto power save and zero adjustment

Hioki CM4371-90 Specifications

AC Current	20/600 A (10 Hz to 1 kHz, True RMS) with ±1.3% of reading ±0.08 A (at 20 A) accuracy
DC Current	20/600 A with ±1.3% of reading ±0.08 A (20 A range) accuracy
AC + DC Current	20/600 A (10 Hz to 1 kHz, True RMS) with ±1.3% of reading ±0.13 A (at 20 A) accuracy
AC Voltage	6 to 1,000 V in 4 ranges (15 Hz to 1 kHz, True RMS) with ±0.9% of reading ±3 digits accuracy
DC Voltage	600 mV to 1,500 V in 5 ranges with ±0.5% of reading ±3 digits accuracy
AC + DC Voltage	6 to 1,000 V in 4 ranges with ±1.0% of reading ±7 digits accuracy
Crest Factor	20 A range: 7.5, 600 A range: 3 or less
Resistance	600 Ω to 600k Ω in 4 ranges with ±0.7% of reading ±5 digits accuracy
Electrostatic Capacity	1 to 1,000 μF in 4 ranges with ±1.9% of reading ±5 digits accuracy
Frequency	9.999 to 999.9 Hz with ±0.1% of reading ±1 digit accuracy
Temperature	-40 to 752°F (-40 to 400°C) with ±0.5% of reading ±3°C accuracy (plus temperature probe accuracy)
Voltage Detection	High: 40 to 600 VAC, low: 80 to 600 VAC, 50/60 Hz
Other Functions	Automatic AC/DC detection, plus/minus judgment function of DC A, DC V, max/min/average/peak max/peak min value display, filter function, display value hold, auto hold, backlight, auto power save, zero adjustment
IP Rating	Grip: IP54, jaw/barrier: IP50
Core Jaw Diameter	φ1.3" (33 mm), 2.72 x 0.55" (69 x 14 mm)
Product Length	1.38" (35 mm)
Product Width	2.56" (65 mm)
Product Height	8.46" (215 mm)
Product Weight	12 oz (340 g)
Manufacturer Warranty	3-year limited

Click here for complete specifications on the Hioki CM4371-90

What's included with the Hioki CM4371-90

AC/DC Clamp Meter
L9207-10 Test Lead
C0203 Carrying Case
2 x LR03 Alkaline Batteries
Instruction Manual
