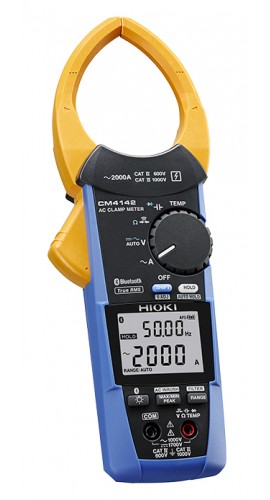

Hioki CM4142-20 AC Clamp Meter 2000 A with bluetooth

Model: CM4142-20

Hioki CM4142-20 AC Clamp Meter 2000 A with bluetooth

Model: CM4142-20

Effortlessly get into narrow gaps in crowded electrical distribution boxes without damaging cables with this AC clamp meter which features a uniquely designed slim jaw. In addition, this meter features built-in Bluetooth technology to wirelessly send measurement data to mobile devices for creating reports.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our AC Clamp Meters category for similar products.

Or let's do a search and help you find what you need:

Hioki CM4142-20 Offers

Features

Easily get into tight spaces between cables thanks to thin sensor with a minimum cross-section span of 11 mm

AC only, measures up to 2000 AAC

13 to 149°F (-25 to 65 °C) operating temperature range

AC A, AC and DC V, DC+AC V, resistance, frequency, temperature, and more

Buzzer sounds at 50 Ω ±40 Ω or less

Drop-proof from height of 1 meter

Send measured values to a smartphone or tablet using Bluetooth wireless technology

Hioki CM4142-20 Specifications

AC Current Range	60 to 2000 A, 3 ranges (45 Hz to 1 kHz, True RMS) Basic accuracy 45-66 Hz: ±1.5% rdg. ±0.08 A
DC Voltage Range	600 mV to 1500 V, 5 ranges Basic accuracy: ±0.5% rdg. ±0.5 dgt (at 600 mV range)
AC Voltage Range	6 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS) Basic accuracy 45-66 Hz: ±0.9% rdg. 0.003 V (at 6 V)
Frequency Range	Voltage: 9.999 Hz to 999.9 Hz 3 ranges, Current: 99.99 Hz to 999.9 Hz 2 ranges, Basic accuracy: ±0.1% rdg. ±0.01 Hz (at 99.99 Hz)
Crest Factor	For the 60 A range: 2.5 (greater than 50 A and less than or equal to 60 A) to 2000 A range: 1.5 (2000 A or less)
Resistance Range	600 Ω to 600 kΩ, 4 ranges Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)
Temperature	-40 to 752°F (-40 to 400 °C), Basic accuracy: ±0.5% rdg. ±37.4°F (3°C) + temperature probe accuracy
Interface	Bluetooth 4.0LE, Supported devices: iOS, Android smartphone/tablet GENNECT Cross (free downloadable app): display measured values and waveforms, simple logging function, waveform monitor function, hold save function
Dustproof Waterproof	IP20 (Current measurement of voltage or hazardous live conductors under completely dry condition) IP50 (When measuring or storing the resistance of a completely dry state or the current of an insulated conductor), However, dustproof and waterproof design equivalent to IP54 only on the handheld part and in a non-measurement state.
Power Supply	2 x LR03 Alkaline battery, Continuous use: 48 hr (Backlight OFF)
Core Jaw Diameter	φ 2.17" (55 mm), Jaw dimension: 3.23 x 0.43" (82 x 11 mm)
Dimensions	2.56 x 9.72 x 1.38" (65 x 247 x 35 mm)
Weight	300 g (10.6 oz)

What's included with the Hioki CM4142-20

Clamp Meter
Test Lead L9207-10
Carrying Case
2 x CR2032 Lithium Battery
Instruction Manual
Download Guide
Operating Precautions
