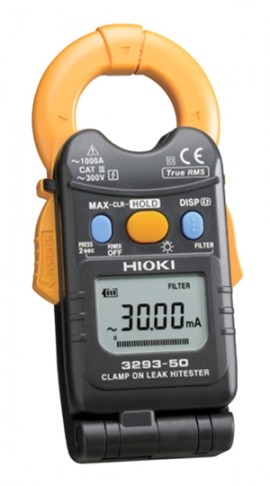

Hioki 3293-50 True MS AC Current Leakage Flip Clamp HiTester

Model: 3293-50

Be the first to review this product

Featuring a 1mA to 1000A AC leakage to load current clamp meter with 10 µA resolution in an innovative flip design.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Hioki CM4001 AC Leakage Clamp Meter, 40 to 999.9 Hz With Wireless Adapter

Model: CM4001-90

The meter is designed to measure current running through a cable. The slim jaws allow it to work in confined spaces easier. Bundled with the Wireless Adapter Z3210

Learn More

Hioki 3293-50 Offers

Features

Thin and compact clamp core that can measure current between a wide 30mA to 1000A range
Constructed so that the position of the display panel can be adjusted to suit the measuring location
Back light makes it easy to use even in dark locations
Measure for leakage current and load all with the same device
Innovative flip clamp design
Flip display to see measurement readings from any angle
1mA to 1000A accuracy guaranteed
6 ranges and bar graph display
Measure and display only the leakage current of commercial frequency components using the filter function

Hioki 3293-50 Specifications

AC Current	30/300 m/6/60/600/1000 A, 6 ranges, 45 to 400 Hz, True RMS Basic accuracy: ±1.5% rdg. ±5dgt. (50/60 Hz, filter ON) Guaranteed accuracy: from 1 mA
Crest Factor	2.8 or less (1.68 or less at 1000 A range)
Filter Function	Cut off frequency 180 Hz at filter ON (-3 dB)
Functions	Flip-open mechanism (but still retaining proper orientation of display), Backlight, Maximum value display, Data hold, Auto power off
Display	Digital LCD, max. 6000 dgt., 91 segments Display refresh rate: 1.1 sec or less
Power Supply	1 x Coin type lithium battery (CR2032), Continuous use 18 hours
Core Jaw Diameter	Ø 0.94" (24 mm)
Dimensions	1.97 x 5.12 x 1.02" (50 x 130 x 26 mm)
Weight	4.8 oz (135 g)

Click here for complete specifications on the Hioki 3293-50

What's included with the Hioki 3293-50

Clamp Meter
Lithium Battery
Strap
Instruction Manual
Carrying Case
