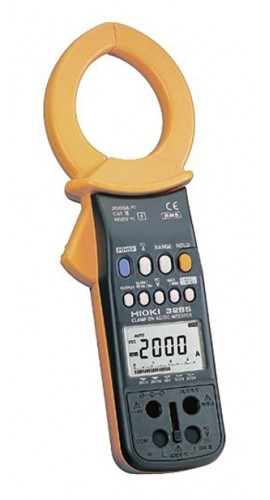

Hioki 3285 Clamp On AC/DC HiTester

Model: 3285

Be the first to review this product

Featuring a 200/2000A AC/DC clamp meter with continuity check and resistance testing, or analog output.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Toolbox category for similar products.

Or let's do a search and help you find what you need:

Hioki 3285 Offers

Features

Analog output for current measuring level, current measuring waveform, or frequency measuring level
Peak hold function displays the crest value peak current up to 2840 A
AAC+DC mode enables measurement of the RMS value of full- or half-wave rectified waveforms

Hioki 3285 Specifications

DC Current	200/2000 A Basic accuracy: ±1.3% rdg. ±3 dgt.
AC Current	200/2000 A (10 Hz to 1 kHz, True RMS) Basic accuracy 45 to 66 Hz: ±1.3% rdg. ±3 dgt.
DC Voltage	30 to 600 V, 3 ranges Basic accuracy: ±1.0% rdg. ±3 dgt.
AC Voltage	30 to 600 V, 3 ranges (10 to 1 kHz, True RMS) Basic accuracy 45 to 66 Hz: ±1.0% rdg. ±3 dgt.
Sampling Rate	2 or 4 times/sec (Slow: 1 time/3 sec)
Crest Factor	2.5 or less (1.42 at 2000 A, 1.7 at 600 V)
Monitor, Analog Output	DC, or AC 1 V/ f.s., Level output, Waveform output: DC to 15 kHz bandwidth (±3dB)
Frequency	1 to 1000 Hz Basic accuracy: ±0.3% rdg. ±1 dgt.
Functions	AC+DC mode, Maximum/ Minimum/ Average value record function, Data hold, Peak hold, Auto power off, Auto zero
Display	Display refresh rate: 4 times/s (FAST), 1 time/3s (SLOW), 4 times/s (bar graph)
Power Supply	1 x 6F22 (Stacked manganese battery), Continuous use: 25 hours, or AC adapter 9445-02/-03
Measurement Category	CAT III 600V
Core Jaw Diameter	Ø 2.17" (55 mm)
Dimensions	2.44 x 10.24 x 1.54" (62 x 260 x 39 mm)
Weight	19 oz (540 g)

Click here for complete specifications on the Hioki 3285

What's included with the Hioki 3285

Clamp Meter
Test Lead
Stacked Manganese Battery (6F22)
Hand Strap
Instruction Manual
Carrying Case

datasheet for the Hioki 3285 Clamp On AC/DC HiTester manual for the Hioki 3285 Clamp On AC/DC HiTester
