Monitor leak current with this clamp-on tester. The unit can measure current from 10mA to 200A with 10μA resolution.
Monitor leak current with this clamp-on tester. The unit can measure current from 10mA to 200A with 10μA resolution.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

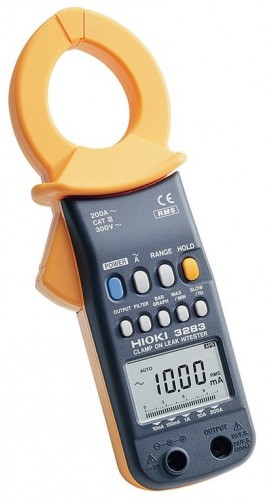

With this Hioki 3283 Clamp-On Leak Current HiTester, you can easily measure leak current from 10mA to 200A across 5 ranges with 10μA resolution. The output lets you monitor the analysis on a compatible Memory HiCorder (sold separately).
Features
| AC Current | 10mA/100mA/1A/10A/200A in 5 ranges (40Hz to 2kHz, true RMS) with ±1% of reading, ±5 digits accuracy |
| Frequency | 30 to 1,000Hz in 2 ranges with ±0.3% of reading, ±1 digit accuracy |
| Crest Factor | 2.5 or less (1.5 at 200A range) |
| Filter Function | 180Hz (-3dB) cut-off frequency at filter on |
| Output | REC output for current: DC 1V/full scale (2V/full scale at only 200A range), MON output for current: AC 1V/full scale (2V/full scale at only 200A range), 5Hz to 15kHz frequency bandwidth (-3dB) |
| Display | 2,000-digit LCD with 4 times/second (fast), 1 time/3 seconds (slow) and 4 times/second (bar graph) refresh rates |
| Power Supply | 6LR61 stacked alkaline battery, 6F22 stacked manganese battery, AC adapter 9445-02/-03 |
| Core Jaw Diameter | φ1.57in (40mm) |
| Other Functions | Max/min/average value record, data hold, auto power off |
| CE Marked | No |
| Product Length | 1.54in (39mm) |
| Product Width | 2.44in (62mm) |
| Product Height | 8.86in (225mm) |
| Product Weight | 14.1oz (400g) |
