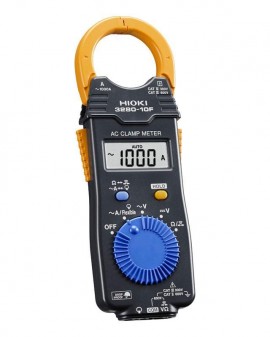

Hioki 3280-10F AC Clamp Meter, 1,000A

Model: 3280-10F

Be the first to review this product

Downloads: manual

More Hioki Products

Ask an Expert

Hioki 3280-10F AC Clamp Meter, 1,000A

Model: 3280-10F

Be the first to review this product

Use this clamp meter to measure AC signals up to 1,000A, as well as voltage and resistance. The clamp meter features a dustproof and waterproof design.

Your Price	$89.00 USD
Availability	3 to 4 Weeks
Quantity	Quantity

Hioki 3280-10F Offers

Measure AC current up to 1,000A, as well as voltage and resistance, with this Hioki 3280-10F AC Clamp Meter. The meter uses the average rectified method to measure the fundamental waveform component, while the dustproof, waterproof and drop-proof design offers rugged durability.

Features

Uses the average rectified method to measure the fundamental waveform component
Offers a vast operating temperature range of -13 to 149°F (-25 to 65°C)
Capable of also delivering voltage and resistance measurements and continuity check functionality
Can be used with the CT6280 flexible current sensor (sold separately) to measure thick or paired wires
Built to withstand drops from up to 3.28ft (1m)
IP40 dustproof and waterproof design
CAT II (600V voltage), CAT III (300V voltage), CAT III (600V current) and CAT IV (300V current) rating
Operates on a CR2032 coin-type lithium battery
CE-compliant

Hioki 3280-10F Specifications

AC Current	41.99 to 1,000A, 3 ranges (50 to 60Hz, average rectified), ±1.5% reading, ±5 digits accuracy
DC Voltage	419.9mV to 600V, 5 ranges, ±1% reading, ±3 digits accuracy
AC Voltage	4.199 to 600V, 4 ranges (45 to 500Hz, average rectified), ±1.8% reading, ±7 digits accuracy
Resistance	419.9Ω to 41.99MΩ, 6 ranges, ±2% reading, ±4 digits accuracy
Display	4,199-digit LCD with 400ms refresh rate
Core Jaw Diameter	φ1.3in (33mm)
Other Functions	Continuity, data hold, auto power save
Product Length	0.63in (16mm)
Product Width	2.24in (57mm)
Product Height	6.89in (175mm)
Product Weight	3.5oz (100g)

What's included with the Hioki 3280-10F

AC Clamp Meter
9398 Carrying Case
L9208 Test Lead
CR2032 Lithium Battery
Instruction Manual

manual for the Hioki 3280-10F AC Clamp Meter, 1,000A

Ask a question about Hioki 3280-10F AC Clamp Meter, 1,000A

Customer Reviews for the Hioki 3280-10F

Description ➕➖

Hioki 3280-10F Offers

Features

Uses the average rectified method to measure the fundamental waveform component
Offers a vast operating temperature range of -13 to 149°F (-25 to 65°C)
Capable of also delivering voltage and resistance measurements and continuity check functionality
Can be used with the CT6280 flexible current sensor (sold separately) to measure thick or paired wires
Built to withstand drops from up to 3.28ft (1m)
IP40 dustproof and waterproof design
CAT II (600V voltage), CAT III (300V voltage), CAT III (600V current) and CAT IV (300V current) rating
Operates on a CR2032 coin-type lithium battery
CE-compliant

Specifications ➕➖

Hioki 3280-10F Specifications

AC Current	41.99 to 1,000A, 3 ranges (50 to 60Hz, average rectified), ±1.5% reading, ±5 digits accuracy
DC Voltage	419.9mV to 600V, 5 ranges, ±1% reading, ±3 digits accuracy
AC Voltage	4.199 to 600V, 4 ranges (45 to 500Hz, average rectified), ±1.8% reading, ±7 digits accuracy
Resistance	419.9Ω to 41.99MΩ, 6 ranges, ±2% reading, ±4 digits accuracy
Display	4,199-digit LCD with 400ms refresh rate
Core Jaw Diameter	φ1.3in (33mm)
Other Functions	Continuity, data hold, auto power save
Product Length	0.63in (16mm)
Product Width	2.24in (57mm)
Product Height	6.89in (175mm)
Product Weight	3.5oz (100g)
