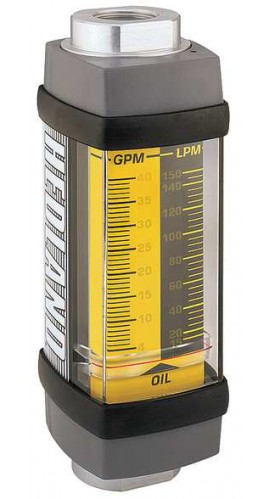

Hedland H901A-300 Variable Area Petroleum Fluid Flow Meter, 3" NPT, 20 to 300 GPM

Model: H901A-300

Be the first to review this product

Hedland H901A-300 Variable Area Petroleum Fluid Flow Meter, 3" NPT, 20 to 300 GPM-

Image is for reference only, refer to product info for complete details.

Downloads: manual

More Hedland Products

Ask an Expert

Hedland H901A-300 Variable Area Petroleum Fluid Flow Meter, 3" NPT, 20 to 300 GPM

Model: H901A-300

Be the first to review this product

Designed to integrate into hydraulic systems, which makes this fluid flow meter ideal for operators that need a visual indication of flow without the need for additional electronics. Additionally, this meter features an LPM of 100 to 1100.

Sale Price	$2156.47 USD
Regular Price	$2423.00 USD
Availability	5 to 6 Weeks
Quantity	Quantity

Hedland H901A-300 Offers

Features

Direct reading
Install in any position
360° rotatable guard/scale
Easier-to-read linear scale
No flow straighteners or special piping required
Relatively insensitive to shock and vibration
Good viscosity stability
Calibrated for 0.876 S.G.

Hedland H901A-300 Specifications

Flow Range
GPM	20 to 300
LPM	100 to 1100
Pressure Drop
50% Flow PSI (BAR)	11 psi (0.76 bar)
100% Flow PSI (BAR)	18 psi (1.2 bar)
General Specifications
Pressure Rating	3500 psi/241 bar max. (800 psi/55 bar max. for 3" series) with a 3:1 safety factor
Accuracy	±2% of full scale
Repeatability	±1%

What's included with the Hedland H901A-300

Hedland H901A-300 Variable Area Petroleum Fluid Flow Meter, 3" NPT, 20 to 300 GPM

manual for the Hedland H901A-300 Variable Area Petroleum Fluid Flow Meter, 3" NPT, 20 to 300 GPM

Ask a question about Hedland H901A-300 Variable Area Petroleum Fluid Flow Meter, 3" NPT, 20 to 300 GPM

Customer Reviews for the Hedland H901A-300

Description ➕➖

Hedland H901A-300 Offers

Features

Direct reading
Install in any position
360° rotatable guard/scale
Easier-to-read linear scale
No flow straighteners or special piping required
Relatively insensitive to shock and vibration
Good viscosity stability
Calibrated for 0.876 S.G.

Specifications ➕➖

Hedland H901A-300 Specifications

Flow Range
GPM	20 to 300
LPM	100 to 1100
Pressure Drop
50% Flow PSI (BAR)	11 psi (0.76 bar)
100% Flow PSI (BAR)	18 psi (1.2 bar)
General Specifications
Pressure Rating	3500 psi/241 bar max. (800 psi/55 bar max. for 3" series) with a 3:1 safety factor
Accuracy	±2% of full scale
Repeatability	±1%
