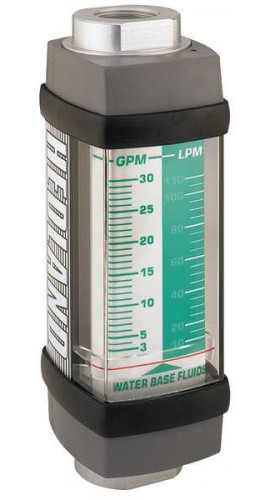

Image is for reference only, refer to product info for complete details.
Monitor fluid flow rates of water and oil emulsions with this water-based fluid flow meter. Additionally, this meter is ideal for operators that need a quick visual indication of flow, without having to use additional products, and features an LPM of 40 to 280.
Monitor fluid flow rates of water and oil emulsions with this water-based fluid flow meter. Additionally, this meter is ideal for operators that need a quick visual indication of flow, without having to use additional products, and features an LPM of 40 to 280.
Features
| Flow Range | |
| GPM | 10 to 75 |
| LPM | 40 to 280 |
| Pressure Drop | |
| 50% Flow PSI (BAR) | 5 psi (0.35 bar) |
| 100% Flow PSI (BAR) | 10 psi (0.72 bar) |
| Reverse 100% Flow PSI (BAR) | 31.9 psi (2.2 bar) |
| General Specifications | |
| Pressure Rating | 3500 psi/241 bar max. (800 psi/55 bar max. for 3" series) with a 3:1 safety factor |
| Accuracy | ±2% of full scale ±7% of full scale for ¼" meters |
| Repeatability | ±1% |
| Flow Range | |
| GPM | 10 to 75 |
| LPM | 40 to 280 |
| Pressure Drop | |
| 50% Flow PSI (BAR) | 5 psi (0.35 bar) |
| 100% Flow PSI (BAR) | 10 psi (0.72 bar) |
| Reverse 100% Flow PSI (BAR) | 31.9 psi (2.2 bar) |
| General Specifications | |
| Pressure Rating | 3500 psi/241 bar max. (800 psi/55 bar max. for 3" series) with a 3:1 safety factor |
| Accuracy | ±2% of full scale ±7% of full scale for ¼" meters |
| Repeatability | ±1% |
