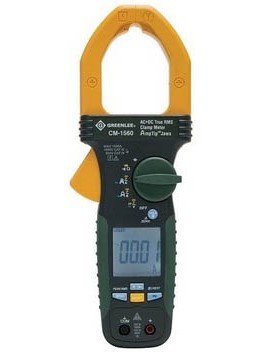

Greenlee CM-1560 AC/DC Current Multimeter with Clamp, 1,000 A

Model: CM-1560 | UPC: 783310021889

Be the first to review this product

This multimeter measures both AC current and DC current. It's equipped with AmpTip™ for greater accuracy.

Sale Price	$333.12 USD
Regular Price	$411.26 USD
Availability	2 to 3 Weeks2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your CM-1560 AC/DC Current Multimeter with Clamp

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIGM2) for only $125.00 USD

Traceable Calibration Certificate for your CM-1560 AC/DC Current Multimeter with Clamp

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIGM2) for only $125.00 USD

Greenlee CM-1560 Offers

Use the Greenlee CM-1560 AC/DC Current Multimeter with Clamp to get fast, accurate readings. In addition to current, it also measures voltage, resistance, capacitance and frequency. Advanced features, such as an AmpTip™, a peak-RMS tester and a clamp flashlight, help make operation simple.

Features

Device measures AC current, DC current, DC voltage, resistance, capacitance and frequency
Takes voltage measurements with a digital low pass filter to increase accuracy on variable frequency drives
AmpTip™ provides reliable readings on small wires and low currents
Voltage detection modes: non-contact and single test lead
Tests continuity and diodes
Peak-RMS measures motor inrush current
Captures current or voltage peaks as short as 5 milliseconds
Equipped with clamp, clamp flashlight, data hold and backlight and relative modes
Records minimum, maximum and average readings

Greenlee CM-1560 Specifications

Amperage	60, 600, 1,000 A AC/DC
Voltage	600, 1,000 VAC/VDC
True Power	AC/DC true RMS
Display	LCD (6,000 count)
Jaw Opening	2" (51 mm)
Frequency Rating	Voltage: 50/60 Hz; current: 40 to 400 Hz
Resistance	600, 6k, 60k Ω
Measurement Category	CAT III 1,000 V; CAT IV 600 V
Standard	CAT IV, C/US UL listed, CE
Manufacturer Warranty	Lifetime

Click here for complete specifications on the Greenlee CM-1560

What's included with the Greenlee CM-1560

Multimeter
Test Leads
Carrying Case
2 x 1.5 V AA Batteries
