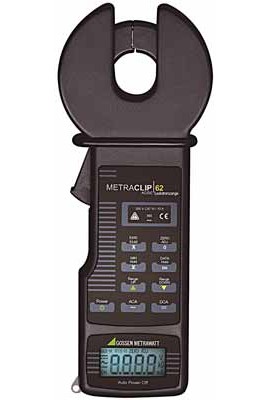

Gossen Metrawatt METRACLIP 62 Digital Leakage Current Clamp, 3 Measuring Ranges

Model: METRACLIP 62 | Order No: M311F

Be the first to review this product

Digital clip-on meter for measurement of leakage current and charging current. Features three measuring ranges of 200 mA, 2000 mA, 10 A TRMS, respectively AC and DC with Hall Sensor.

Sale Price	$1644.04 USD
Regular Price	$1712.54 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your M311F Digital Leakage Current Clamp

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Traceable Calibration Certificate for your M311F Digital Leakage Current Clamp

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Gossen Metrawatt METRACLIP 62 Offers

Features

3 measuring ranges 1 mA to 10 A AC TRMS / DC
High resolution due to hall effect sensor
Switch-over between DC and AC measurements
Zero balancing for DC measurements
Storage of reference values for AC measurements
Display of maximum or minimum current measured value
Storage of measured value (DATA HOLD)
Battery saving circuit
Insensitive to magnetic interference fields thanks to double shielding

Applications

Measurement of leakage current at grounded conductors
Measurement of leakage current at single-phase or 3-phase systems
Measurement of line current
Measurement of charging current

Gossen Metrawatt METRACLIP 62 Specifications

Measuring Range	200 mA/2000 mA/10 A
Resolution	100 µA/1 mA/0.01 A
Frequency range	50 to 60 Hz
Display	3½ digits, max. display 1999
Operating temperatures	0 to 50°C
Storage temperatures	-20 to 60°C
Power supply	2 x LR6 (AA size) Batteries
Dimensions	76 x 194 x 30 mm
Weight	approx. 350 g with batteries

Click here for complete specifications on the Gossen Metrawatt METRACLIP 62

What's included with the Gossen Metrawatt METRACLIP 62

Current Clamp Meter
Batteries
Leather Bag
Operating Instructions
