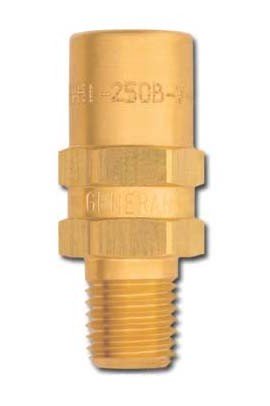

Compact and highly accurate, this vent relief valve is factory preset to desired crack pressure and/or flow specifications. With an internal adjustment, this valve provides tamper-proof safety against inadvertent pressure changes and features an encapsulated O-ring seal to prevent extrusion at higher differential pressures.
Compact and highly accurate, this vent relief valve is factory preset to desired crack pressure and/or flow specifications. With an internal adjustment, this valve provides tamper-proof safety against inadvertent pressure changes and features an encapsulated O-ring seal to prevent extrusion at higher differential pressures.
This product is a special order item which can’t be returned or cancelled.
Features
| Set Pressure Range | 150 to 600 psig (10.3 to 42 bar) |
| Inline Valves | Proof pressure: 750 psig (52 bar) Burst pressure: >1000 psig (69 bar) |
| Set Pressure Tolerance | Factory preset ±5% on increasing pressure |
| Reseat | 90% of set pressure |
| Temperature Rating | -320 to 350°F (-195 to 177°C) Based on seal selection |
| Set Pressure Range | 150 to 600 psig (10.3 to 42 bar) |
| Inline Valves | Proof pressure: 750 psig (52 bar) Burst pressure: >1000 psig (69 bar) |
| Set Pressure Tolerance | Factory preset ±5% on increasing pressure |
| Reseat | 90% of set pressure |
| Temperature Rating | -320 to 350°F (-195 to 177°C) Based on seal selection |
