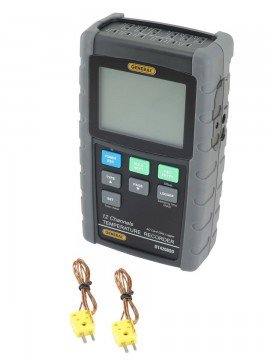

General Tools DT4208SD 12-Channel Thermocouple Thermometer with Excel-formatted data logging SD card, -148 to 3092°F

Model: DT4208SD

Be the first to review this product

General Tools DT4208SD 12-Channel Thermocouple Thermometer with Excel-formatted data logging SD card, -148 to 3092°F-

Downloads: datasheet manual

More General Tools Products

Ask an Expert

General Tools DT4208SD 12-Channel Thermocouple Thermometer with Excel-formatted data logging SD card, -148 to 3092°F

Model: DT4208SD

Be the first to review this product

This is designed for simultaneous monitoring of up to 12 temperatures in demanding industrial and commercial applications such as food processing, HVAC/R, power generation, and chemical or paper production.

Sale Price	$805.19 USD
Regular Price	$1103.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

General Tools DT4208SD Offers

Features

Displays up to eight channels at a time; one push of a button switches to Channels 9 through 12Works with and automatically temperature-compensates for six popular thermocouple types: "K", "J", "T", "E", "S" and "R"
Combining thermocouple types extends the overall measurement range to -148 to 3092°F (-100 to 1700°C)
Can automatically log 12 channels of data every day during same period (loop data recording)
Big (3.9" (9.9 cm) diagonal) front-panel green backlit LCD is easy to read
Minimum/Maximum memory + data hold
Sampling time is settable from one second to one hour

Applications

Food and chemical processing
PC board burn-in
Paper production
HVAC/R installations
Power generation

General Tools DT4208SD Specifications

Measurement Range of Thermocouple Port	-328 to 2498°F (-200 to 1370°C)
Measurement Accuracy	±0.1% (±1°F)
Measurement Range of Included Thermocouples	-50 to 500°F (-45 to 260°C)
Display Size and Type	3.23 x 2.40" (82 x 61 mm)/LCD
Power Source	Eight "AA" batteries (not included) or optional #AC1 9V AC adaptor
Dimensions	8.86 x 4.92 x 2.52" (225 x 125 x 64 mm)
Weight	1.84 lbs (827 g)

Click here for complete specifications on the General Tools DT4208SD

What's included with the General Tools DT4208SD

Thermocouple Thermometer
2 x Thermocouple Probes
2GB SD Memory Card
Carrying Case
One-Year Warranty
