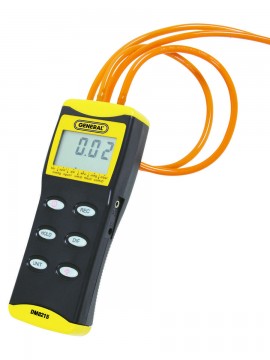

Measures gauge or differential pressure from 0 to 15 psi with 0.01 psi resolution and ±0.3% accuracy, ideal for HVAC/R gas pressure applications.
Measures gauge or differential pressure from 0 to 15 psi with 0.01 psi resolution and ±0.3% accuracy, ideal for HVAC/R gas pressure applications.
Features
Measurement Range/Resolution | 0 to 15 psi/0.01 psi |
Measurement Accuracy | ±0.3% of full-scale value |
Response Time | 0.5 seconds |
Auto Power Off | After 20 minutes of inactivity |
Operating Temperature | 32 to 122°F (0 to 50°C) at <80% RH |
Power Source | "9V" battery (included) or optional #Z110VADPT 9V AC adaptor |
Combined Accuracy | ±1% of full scale |
Dimensions of Connection Hoses | 39" (1 m) long 0.16" (4 mm) I.D. 0.24" (6 mm) O.D. |
Dimensions | 7.2 x 2.8 x 1.2" (182 x 72 x 30 mm) |
Weight | 7.6 oz (215 g) |
Measurement Range/Resolution | 0 to 15 psi/0.01 psi |
Measurement Accuracy | ±0.3% of full-scale value |
Response Time | 0.5 seconds |
Auto Power Off | After 20 minutes of inactivity |
Operating Temperature | 32 to 122°F (0 to 50°C) at <80% RH |
Power Source | "9V" battery (included) or optional #Z110VADPT 9V AC adaptor |
Combined Accuracy | ±1% of full scale |
Dimensions of Connection Hoses | 39" (1 m) long 0.16" (4 mm) I.D. 0.24" (6 mm) O.D. |
Dimensions | 7.2 x 2.8 x 1.2" (182 x 72 x 30 mm) |
Weight | 7.6 oz (215 g) |
