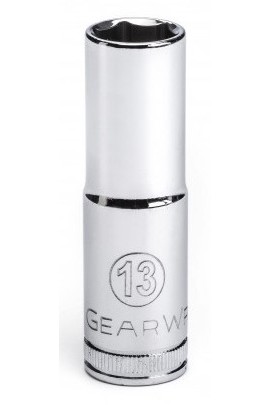

Offer a chamfered opening, this 6-point deep metric socket has an alloy steel material with a fastener size of 13 mm.
Offer a chamfered opening, this 6-point deep metric socket has an alloy steel material with a fastener size of 13 mm.
The 6-point deep ⅜" drive metric socket 0.51" meets or exceeds ASME specifications.
Features
| Overall Length | 2.5" |
| SAE/Metric/Torx | Metric |
| ASME Specification | B107.5M |
| Fastener Size | 0.51" (13 mm) |
| Drive Type | 6 Point |
| Drive Tang Size | ⅜" |
| Length Format | Deep |
| Dim. A: Drive End | 0.74" |
| Dim. C: Overall Length | 2.5" |
| Dim. F: Length to Shoulder | 1.142" |
| Dim. D: Bolt Clearance | 0.335" |
| Dim. E: Wrench Depth | 0.287" |
| Dim. B: Wrench End | 0.697" |
| Finish | Full Polish Chrome |
| Material | Alloy Steel |
| Weight | 0.16 lb |
| Overall Length | 2.5" |
| SAE/Metric/Torx | Metric |
| ASME Specification | B107.5M |
| Fastener Size | 0.51" (13 mm) |
| Drive Type | 6 Point |
| Drive Tang Size | ⅜" |
| Length Format | Deep |
| Dim. A: Drive End | 0.74" |
| Dim. C: Overall Length | 2.5" |
| Dim. F: Length to Shoulder | 1.142" |
| Dim. D: Bolt Clearance | 0.335" |
| Dim. E: Wrench Depth | 0.287" |
| Dim. B: Wrench End | 0.697" |
| Finish | Full Polish Chrome |
| Material | Alloy Steel |
| Weight | 0.16 lb |
