Gas Clip SGC-DOCK Calibration and Docking Station for Gas Clip Gas Detectors

Model: SGC-DOCK

Gas Clip SGC-DOCK Calibration and Docking Station for Gas Clip Gas Detectors

Model: SGC-DOCK

Sale Price $2008.13 USD
Regular Price $2295.00 USD
Availability 2 to 3 Weeks
Quantity

Gas Clip SGC-DOCK Offers

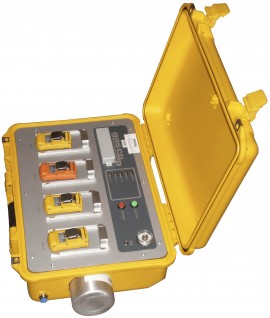

Gas Clip Technologies Clip Dock is an all in one docking station designed for maximum testing efficiency and portability. Housed in a rugged Pelican case with robust USB memory, this station will be able to accurately test and record all monitor data while reducing testing time and gas usage.

Traditional docking stations are only designed to test one monitor at a time, resulting in time consuming testing periods as well as unnecessary usage of testing gas. Gas Clip Technologies has significantly improved both testing time and test gas usage with the Clip Dock; users can now test 4 units simultaneously saving both time and money.

Unit Configuration/Firmware Updates: In order to keep your fleet of gas detectors compliant with specific settings, we allow for the Clip Dock to program each unit during either bump testing or calibration. The programmable fields are as follows: User ID, Calibration Interval, Bump Interval, Self-Test Interval, Low Alarm, High Alarm, Show Sensor Readings, Hide Bump Due LED and Hide Clock. For example, if your company or facility requires each detector on site to have specific alarm set points and a bump test interval, instead of programming each unit individually, the instruments can be group programmed while simultaneously bump testing (4 units at a time per dock) using our GCT Manager software. As firmware updates become available, we can program each Clip Dock to update units during bump testing and calibration. Facility safety standard compliance for single gas detectors is now easily achievable.

Event Data and Record Storage:  In addition to performing tests, unit configurations and firmware updates, the Clip Dock also stores important information about both the docking station and units tested. All tests performed on the docking station can be accessed from either the USB directly or using the GCT Manager software. Each bump test and calibration event is recorded and logged by date, time and serial number. Along with the test records, the individual event logs from each unit are saved. At the time of the test, the detector transmits it's event log to the memory. By default, the station will save the previous 10 event logs.

Slim Dock Case: Gas Clip Technologies offers a wall mount solution for our Clip Dock. Instead of being housed in a Pelican© case, we provide a slim cabinet type case that can be easily mounted on a wall. This option can be selected at the time of order or can be ordered separately to convert your existing Clip Dock to a Slim Dock. This option is a perfect fit for facilities or office environments.

Key Features:

  • Test 4 units at one time, up to 12 monitors in a minute
  • Robust rechargeable internal battery, hundreds of tests before recharging
  • Internal regulator and pressure gauge
  • 2 GB USB memory for bump test and event log storage
  • Optional unit configuration and firmware upgrades
  • Rugged Pelican Case make for a complete portable Dock station
  • No computer required to operate

Specifications:

Size Pelican Case Version: 18.50" x 14.06" x 6.93"
(47 cm x 35.7 cm x 17.6 cm)
Slim Dock Case Version: 17.00" x 11.00" x 1.75"; (Top) / 2.50" (Bottom)
(43.2 cm x 27.9 cm x 4.4 cm (Top) / 6.4 cm (Bottom))
Information Stored Bump/Calibration Logs, Individual monitor event logs, Firmware (unit and docking station) and Unit Configurations
Unit Compatibility Works with all SGC and SGC Plus instruments
Calibration Gas 58L or 116L gas cylinders; larger cylinder configurations available

Gas Clip SGC-DOCK Specifications

Dimensions 47 x 35.7 x 17.6 cm (18.50 x 14.06 x 6.93")
Information Stored  Bump/Calibration Logs, Individual monitor event logs, Firmware (unit and docking station) and Unit Configurations
Unit Compatibility  Works with all SGC and SGC Plus instruments
Calibration Gas  58L or 116L gas cylinders; larger cylinder configurations available
Click here for complete specifications on the Gas Clip SGC-DOCK

What's included with the Gas Clip SGC-DOCK

  • Gas Clip SGC-DOCK Calibration and Docking Station for Gas Clip Gas Detectors
  • Customer Reviews for the Gas Clip SGC-DOCK

    Ask a question about Gas Clip SGC-DOCK Calibration and Docking Station for Gas Clip Gas Detectors

    Gas Clip SGC-DOCK Offers

    Gas Clip Technologies Clip Dock is an all in one docking station designed for maximum testing efficiency and portability. Housed in a rugged Pelican case with robust USB memory, this station will be able to accurately test and record all monitor data while reducing testing time and gas usage.

    Traditional docking stations are only designed to test one monitor at a time, resulting in time consuming testing periods as well as unnecessary usage of testing gas. Gas Clip Technologies has significantly improved both testing time and test gas usage with the Clip Dock; users can now test 4 units simultaneously saving both time and money.

    Unit Configuration/Firmware Updates: In order to keep your fleet of gas detectors compliant with specific settings, we allow for the Clip Dock to program each unit during either bump testing or calibration. The programmable fields are as follows: User ID, Calibration Interval, Bump Interval, Self-Test Interval, Low Alarm, High Alarm, Show Sensor Readings, Hide Bump Due LED and Hide Clock. For example, if your company or facility requires each detector on site to have specific alarm set points and a bump test interval, instead of programming each unit individually, the instruments can be group programmed while simultaneously bump testing (4 units at a time per dock) using our GCT Manager software. As firmware updates become available, we can program each Clip Dock to update units during bump testing and calibration. Facility safety standard compliance for single gas detectors is now easily achievable.

    Event Data and Record Storage:  In addition to performing tests, unit configurations and firmware updates, the Clip Dock also stores important information about both the docking station and units tested. All tests performed on the docking station can be accessed from either the USB directly or using the GCT Manager software. Each bump test and calibration event is recorded and logged by date, time and serial number. Along with the test records, the individual event logs from each unit are saved. At the time of the test, the detector transmits it's event log to the memory. By default, the station will save the previous 10 event logs.

    Slim Dock Case: Gas Clip Technologies offers a wall mount solution for our Clip Dock. Instead of being housed in a Pelican© case, we provide a slim cabinet type case that can be easily mounted on a wall. This option can be selected at the time of order or can be ordered separately to convert your existing Clip Dock to a Slim Dock. This option is a perfect fit for facilities or office environments.

    Key Features:

    • Test 4 units at one time, up to 12 monitors in a minute
    • Robust rechargeable internal battery, hundreds of tests before recharging
    • Internal regulator and pressure gauge
    • 2 GB USB memory for bump test and event log storage
    • Optional unit configuration and firmware upgrades
    • Rugged Pelican Case make for a complete portable Dock station
    • No computer required to operate

    Specifications:

    Size Pelican Case Version: 18.50" x 14.06" x 6.93"
    (47 cm x 35.7 cm x 17.6 cm)
    Slim Dock Case Version: 17.00" x 11.00" x 1.75"; (Top) / 2.50" (Bottom)
    (43.2 cm x 27.9 cm x 4.4 cm (Top) / 6.4 cm (Bottom))
    Information Stored Bump/Calibration Logs, Individual monitor event logs, Firmware (unit and docking station) and Unit Configurations
    Unit Compatibility Works with all SGC and SGC Plus instruments
    Calibration Gas 58L or 116L gas cylinders; larger cylinder configurations available

    Gas Clip SGC-DOCK Specifications

    Dimensions 47 x 35.7 x 17.6 cm (18.50 x 14.06 x 6.93")
    Information Stored  Bump/Calibration Logs, Individual monitor event logs, Firmware (unit and docking station) and Unit Configurations
    Unit Compatibility  Works with all SGC and SGC Plus instruments
    Calibration Gas  58L or 116L gas cylinders; larger cylinder configurations available
    Click here for complete specifications on the Gas Clip SGC-DOCK
