Fluke Networks FI-500 FiberInspector Micro Fiber Optic Endface Inspection Scope

Model: FI-500 | UPC: 754082138365

Be the first to review this product

Fluke Networks FI-500 FiberInspector Micro Fiber Optic Endface Inspection Scope-

Downloads: datasheet manual

More Fluke Networks Products

Ask an Expert

Fluke Networks FI-500 FiberInspector Micro Fiber Optic Endface Inspection Scope

Model: FI-500 | UPC: 754082138365

Be the first to review this product

The inspection scope camera is designed to simplify the fiber inspection process. It is equipped with built-in PortBright illumination and an autofocus camera which provides a sharp view of the endface in just a few seconds. It also comes with a large display to view single multi-mode fiber endfaces.

Your Price	$3150.00 USD
Availability	9 to 10 Weeks
Quantity	Quantity

Fluke Networks FI-500 Offers

The micro fiber inspection scope camera removes the hassle associated with inspecting fiber end-faces, especially in low light and high cable density situations.

Features

PortBright, a built-in flashlight illuminates dark areas and dense panels
Fiber inspection scope camera with autofocus for stable images in few seconds
Large display to view single-mode and multimode fiber end-faces
Autocenter for precise fiber ferule inspection

Applications

Verify that fiber end faces are not contaminated or damaged

Fluke Networks FI-500 Specifications

Temperature Range	Operating: 32 to 122°F (0 to 50°C) Storage: -22 to 140°F (-30 to 60°C)
Humidity Range	Operating: 0 to 95% (32 to 95°F, 0 to 35°C) RH non-condensing Storage: 0 to 95% (95 to 113°F, 35 to 45°C) RH non-condensing
Altitude	Operating: 13,123.36' (4000 m) Storage: 39,370.079' (12,000 m)
Vibration	0.004 lb (2 g), 5 to 500 Hz
Shock	3.28' (1 m) drop test
Battery Type	Rechargeable NiMH, 2 x 1.2 V, 2200 mAh
Display	3.2" TFT LCD, 320 x 240
Input	USB 2.0, Type A
Probe Camera Type	5 Megapixel ¼" CMOS sensor
Dimensions	5.5 x 3.2 x 1.5" (14.0 x 8.0 x 3.9 cm)

Click here for complete specifications on the Fluke Networks FI-500

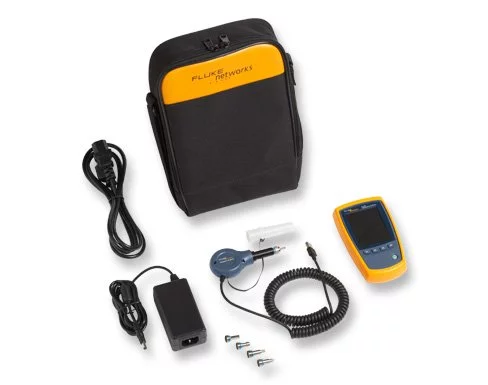

What's included with the Fluke Networks FI-500

Micro Fiber Optic Endface Inspection Scope
Probe
4 x UPC Tips
Magnetic Strap Attachment
Carrying Case
Rechargeable Batteries
Universal Power Adapter

datasheet for the Fluke Networks FI-500 FiberInspector Micro Fiber Optic Endface Inspection Scope manual for the Fluke Networks FI-500 FiberInspector Micro Fiber Optic Endface Inspection Scope
