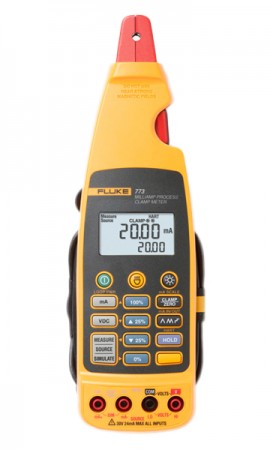

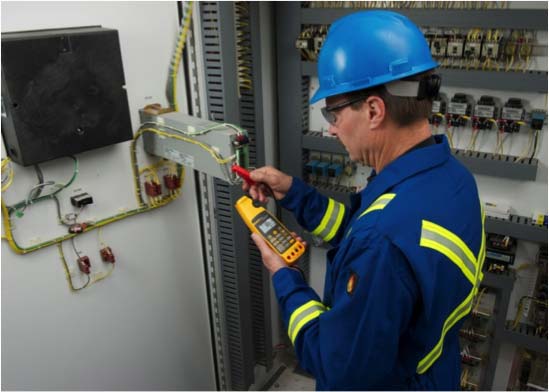

Ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. This meter measures 4 to 20 mA signals without breaking the loop, which allows it to troubleshoot a live device without having to power down. Additionally, users can detach the clamp section of the meter.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTICA2).
Ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. This meter measures 4 to 20 mA signals without breaking the loop, which allows it to troubleshoot a live device without having to power down. Additionally, users can detach the clamp section of the meter.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTICA2).
| Measurement mA (Measured by Clamp) | |
| Resolution/Range | 0 to 20.99 mA |
| General Specifications | |
| Operating Humidity | <90% at <86°F (30°C)<br> <75% at 86 to 131°F (30 to 55°C) |
| Measurement mA (Measured by Clamp) | |
| Accuracy | 0.2% + 5 counts |
| Resolution/Range | 21.0 to 100.0 mA |
| Accuracy | 1% + 5 counts |
| Measurement mA (Measured in Series with Test Jacks) | |
| Resolution/Range | 0 to 24.00 mA |
| Accuracy | 0.2% + 2 counts |
| Source mA (Maximum mA Drive: 24 mA into 1000 Ω) | |
| Resolution/Range | 0 to 24.00 mA |
| Accuracy | 0.2% + 2 counts |
| Simulate mA (Maximum Voltage 50 V DC) | |
| Resolution/Range | 0 to 24.00 mA |
| Accuracy | 0.2% + 2 counts |
| Voltage Source (2 mA Maximum Drive Current) | |
| Resolution/Range | 0 to 10.00 V DC |
| Accuracy | 0.2% + 2 counts |
| Voltage Measure | |
| Resolution/Range | 0 to 30.00 V DC |
| Accuracy | 0.2% + 2 counts |
| General Specifications | |
| Diameter of Measurable Conductor | 0.177" (4.5 mm) max |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -13 to 140°F (-25 to 60°C) |
| Operating Altitude | 0 to 6561.7' (0 to 2000 m) |
| Dimensions | 27⁄8 x 5¾ x 115⁄8" (44 x 70 x 246 mm) |
| Weight | 0.9 lb (410 g) |
| IP Rating | IP 40 |
