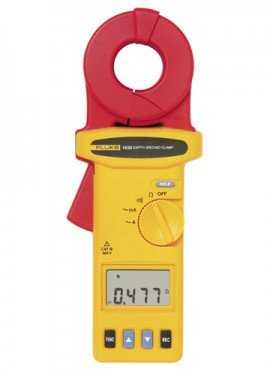

Fluke 1630 Earth Ground Clamp Meter

Model: 1630 | UPC: 095969365567

Fluke 1630 Earth Ground Clamp Meter-

Downloads: datasheet

More Fluke Products

Ask an Expert

Fluke 1630 Earth Ground Clamp Meter

Model: 1630 | UPC: 095969365567

Featuring a wide loop resistance range from 0.025Ω to 1500Ω and a large jaw opening of 35mm.

Featuring a wide loop resistance range from 0.025Ω to 1500Ω and a large jaw opening of 35mm.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 1630-2 FC Earth Ground Clamp, 1000 V, 40 Hz to 1 kHz-

Fluke 1630-2 FC Earth Ground Clamp, 1000 V, 40 Hz to 1 kHz

Model: 1630-2 FC | Order No: 1630-2FC

Fast and safe, this earth-ground clamp measures indoor/outdoor earth-ground resistance and ac leakage currents without disconnecting the earth-ground stake from the grounding system. In addition, this clamp features a heavy-duty clamp jaw that stays in alignment and calibration in industrial conditions.

Learn More

Fluke 1630 Offers

  • Measurement of ground leakage current, from 0.2 mA to 1000 mA, without needing to disconnect - ideal for system troubleshooting
  • Wide ac current measurement range from 0.2 A to 30 A allows one instrument for multiple applications
  • User-defined HI / LO Alarm limits, for rapid measurement evaluation
  • Handy "display hold" button for capturing readings in hard-to-reach places
  • Time saving memory function automatically records and stores measured values
  • Automatic self calibration ensures correct measurement every time
  • Overload protection: 200 A
  • Carrying case and resistance test loop included
  • 8 hours battery life (continuous operation)

Specifications:

Ground Loop Resistance (Autorange)

  • Range: 0.025 to 0.250Ω; 0.250 to 9.999Ω; 10.00 to 99.99Ω; 100.0 to 199.9Ω; 200.0 to 400.0Ω; 400.0 to 600.0Ω; 600.0 to 1500Ω;
  • Resolution: 0.002Ω; 0.02Ω; 0.04Ω; 0.4Ω; 2Ω; 5Ω; 20Ω;
  • Operating Error: ± 1.5 % rdg ± 0.05Ω; ± 1.5 % rdg ± 0.1Ω; ± 2.0 % rdg ± 0.3Ω; ± 3.0 % rdg ± 1.0Ω; ± 5.0 % rdg ± 5Ω; ± 10 % rdg ± 10Ω; ± 20 %

Ground/leakage current mA

  • Range: 0.200 - 1.000 mA; 1.00 - 10.00 mA; 10.0 - 100.0 mA; 100 - 1000 mA
  • Resolution: 0.001 mA; 0.01 mA; 0.1 mA; 1 mA
  • Operating Error: ± 2.5 % rdg ± 0.05 mA; ± 2.5 % rdg ± 0.05 mA; ± 2.0 % rdg ± 0.3 mA; ± 2.0 % rdg ± 3 mA

Current A

  • Range: 0.20 - 15.00 A; 15.00 - 30.00 A
  • Resolution: 0.01 A; 0.01 A
  • Operating Error: ± 2.0 % rdg ± 0.03 A; ± 3.0 % rdg ± 0.03 A

General Specifications

  • Display: 999 digital LC display with special symbols
  • Protection: IP30 according to IEC 529/EN 60529
  • Safety: 300 V, CAT III pollution degree 2 IEC 61010-1 and IEC 61010-2-032
  • Weight: 750 g (1.165 lbs)
  • Conductor Dimensions: 35 mm (1.38 in) approximately
  • Dimension: 276 mm x 100 mm x 47 mm (10.8 in x 3.9 in x 1.9 in)
  • Emission: IEC 1000 4-2, IEC 61326-I class B
  • Immunity: IEC 61000-4-2, 8 kV (air) criteria A
  • IEC 61000-4-3, 3 V/m performance criteria A
  • Range selection: Auto
  • Overload indicator: "OL" on display
  • Measuring time: 0.5 sec
  • Measuring Frequency: 3.333 kHz
  • Battery type: 9 V alkaline (type IEC 6 LR 61)
  • Battery life: 8 hours (continuous operation)
  • Power consumption: 40 mA
  • Low battery indication Display symbol

Specifications

General Specifications
Operating error Refers to the operating temperature range and is guaranteed for 2 years
Storage temp. range -20 °C to 60 °C (-4°F to 140 °F)
Reference temp. range 23 °C ± 5 °C (73 °F ± 9 °F)
Storage humidity <75% Rh
Operating humidity <85% Rh
Display 999 digital LC display with special symbols
Protection IP30 according to IEC 529/EN 60529
Safety 300 V, CAT III pollution degree 2 IEC 61010-1 and IEC 61010-2-032
Weight 750 g (1.165 lbs)
Conductor size 35 mm (1.38 in) approximately
Dimension (length x width x depth) 276 mm x 100 mm x 47 mm (10.8 in x 3.9 in x 1.9 in)
Emission IEC 1000 4-2, IEC 61326-I class B
Immunity IEC 61000-4-2, 8 kV (air) criteria A IEC 61000-4-3, 3 V/m performance criteria A
Range selection Auto
Overload indicator "OL" on display
Measuring time 0.5 sec
Measuring frequency 3.333 kHz
Battery type 9 V alkaline (type IEC 6 LR 61)
Battery life ≥ 8 hours (continuous operation)
Power consumption 40 mA
Low battery indication Display symbol
Click here for complete specifications on the Fluke 1630

What's included with the Fluke 1630

  • Fluke 1630 Earth Ground Clamp Meter
datasheet for the Fluke 1630 Earth Ground Clamp Meter

Click on a category to view a selection of compatible accessories with the Fluke 1630 Earth Ground Clamp Meter.

Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.
