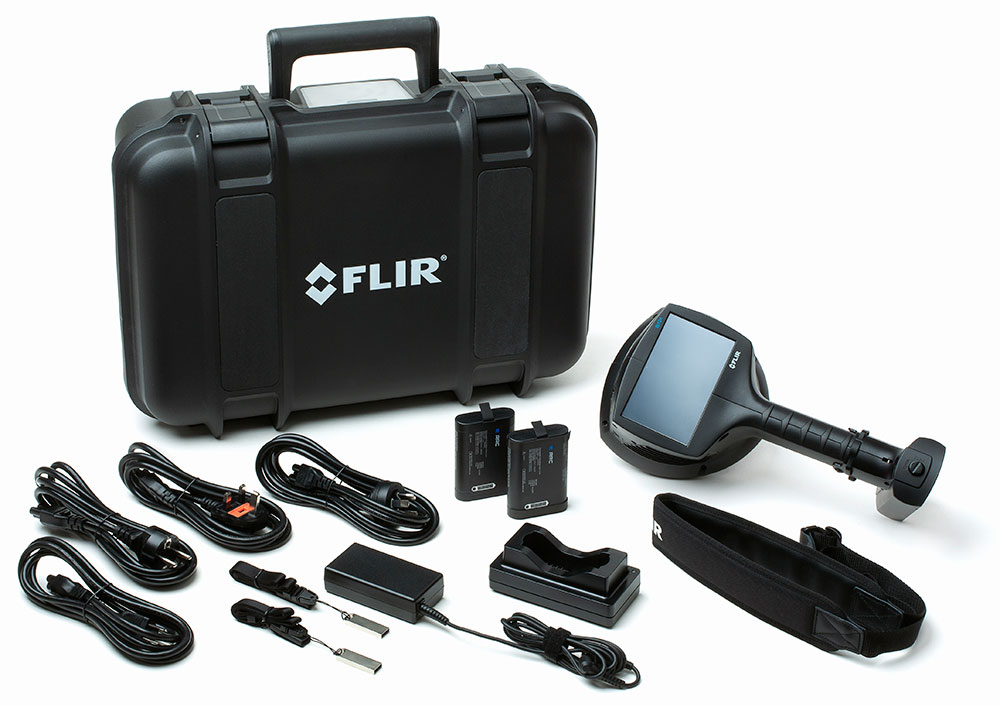

FLIR Si124-LD Plus Offers

Built with 124 microphones, this acoustic camera produces a precise acoustic image that visually displays ultrasonic information, even in loud, industrial environments, which is overlaid in real-time on a digital camera picture, allowing you to pinpoint the source of the sound. An included plugin enables users to import acoustic images to the FLIR Thermal Studio suite for offline editing, analysis, and advanced report creation. Get field analysis and reporting using the Acoustic Camera Viewer cloud service.

Find smaller leaks faster

Detect compressed air and gas leaks up to 10 times faster with ultrasonic imaging vs. traditional methods.

• Auto Filter selects the best frequency range automatically to detect even the smallest leaks
• Quickly locate leaks and automatically upload, analyze, and classify problems to improve the reliability in production lines
• Locate leaks precisely, even in loud industrial environments, thanks to high-resolution acoustic images and 124 built-in microphones
• Instantly view the leak rate onscreen in real-time (l/min or CFM)

Reduce costs, save money

Minimize excess costs resulting from compressed-air leaks.

• Delay the expense of installing new or additional compressors by maintaining existing ones
• Reduce rejected products that could be caused by pressure loss in pneumatic systems
• Quantify leak size to understand how much energy was lost and the amount of money saved by discovering the problem
• Optimize staff time, as minimal training is required to use this acoustic camera

Inspect easily

Quantify the severity of air leaks in real-time with this smart, convenient tool.

• Quantify leaks as low as 0.004 L/min with improved accuracy due to Auto Distance
• Upload, store, and backup data; create reports; and conduct deep analysis using FLIR Acoustic Camera Viewer cloud software or Thermal Studio suite desktop software
• Operate the lightweight camera with one hand for safety and reduced strain
• Easily review images on the display in bright or dark conditions with this adaptable gain camera

Applications

• Compressed air systems
• Maintenance
• Manufacturing
• Engineering
• Industrial environments

How to Update Your Si2 Camera

The Si2 camera can be updated using the Over The Air (OTA) update feature (Cloud based). To update your camera, please follow the instructions in the drop down menu below. Make sure that you read all the steps before attempting the update.

Requirements:

• Ensure that the battery is fully charged. You will not receive any warning or message before starting the update.
• Connect the camera to a stable Wi-Fi network that is unrestricted, or to a network where you know that your device can communicate with the Acoustic Viewer (cloud)
• Make sure that the camera is paired with Acoustic Viewer (cloud)

Download Instructions:

• 1. Tap the settings menu button to access device info and find the camera's initial firmware version at the bottom of the screen
• 2. Please keep your camera on for 10 to 20 minutes. The download process will start automatically once the acoustic viewer recognizes your camera
• 3. Wait for the download to complete (this will vary depending on your network speed). You can track the progress of the download in the camera's Device info label at the bottom of the screen. The percentage of the process will be displayed

*NOTE: Please be aware that the download percentage displayed on the screen does not update automatically. To see the latest progress, tap on the back arrow to switch to the live view. Then, go back to the device info screen. The download will continue running in the background even if you switch screens or perform other actions.

• 4. When the download is completed, the device info will display ...100%. Now you can restart the camera. To restart the camera, first turn it off by long-pressing the power button until it turns red. Wait until it the Red LED light stops glowing, then turn it back on by short-pressing the button until it turns green.

Installation:

• 1. When turning on the camera, the device screen displays that the update is being installed
• 2. Wait until the installation is completed, this process takes around 10 minutes
• 3. The camera will display the FLIR logo, and then switch to the main screen (live view). The update has been now been installed successfully

*Note: If the mode selection at start up is enabled, the camera will display the mode selection screen first. Select a mode and then accept to be directed to the live view

Verification:

• 1. To confirm that your camera software is up-to-date, look at the text box at the bottom of the screen after pressing the settings menu. The device info displays the latest version of the software v3.0.469
• 2. The camera is ready for normal operation
