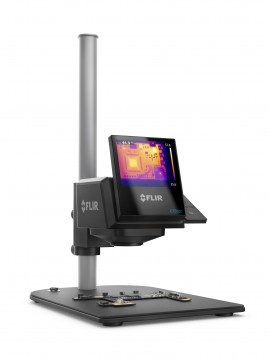

FLIR ETS320 Thermal Imaging Solution for Electronics Testing, 320 x 240

Model: ETS320

Reduce test times and improve product design for electronic board and device evaluation with this affordable solution. The 320 x 240 IR sensor offers 76,800 points of non-contact temperature measurement. Featuring a vibrant 3" LCD display as well as a 45° field of view.

Your Price $2499.00 USD
Availability 1 in Stock
Quantity

FLIR ETS320 Offers

The first FLIR camera designed for quick temperature checks on PCB boards and electronic devices in the lab. Reduce test times & improve product design, and take the guesswork out of thermal testing across more than 76,000 points at once with the sensitive, accurate 320 x 240 detector with the FLIR ETS320 that is designed for hands-free laboratory testing.

Whether the goal is R&D or product testing, heat can be an important indicator of how a system is functioning. This system helps engineers and test technicians collect accurate, reliable data in seconds and analyze it quickly.

Engineered specifically for lab electronics testing, the ETS320 is battery powered and hands free, and connects via USB to your PC for immediate analysis and sharing of thermal data.

Features

  • 320 x 240 pixel IR detector
  • 45° field of view
  • Crisp 3" LCD display provides immediate thermal feedback
  • Thermal sensitivity (NEtD) of 0.06°C
  • Temperature measurement accuracy of ±3°C
  • Wide temperature range, up to 250°C
  • Records standard radiometric JPEGs
  • Ergonomically designed for benchtop use

Applications

  • Laboratory work
  • Product development/testing
  • Research & development
  • Thermal testing
Download the FLIR Brochure

Take the Guesswork out of Thermal Testing

Combining FLIR's advanced thermal imaging with an easy-to-assemble stand, for hands-free measurement of printed circuit boards and other small electronics. The camera is sensitive enough to detect subtle temperature difference with an accuracy of ±3%, so product designers and test engineers can quickly identify potential points of failure. The 320 x 240 IR detector offers more than 76,000 points of temperature measurement, eliminating the guesswork of legacy measurement tools. Designed specifically for lab electronics testing, the battery-powered ETS320 connects to your PC for immediate analysis and sharing of thermal data.

Measure small components down to 170 µm per pixel spot size
Determine where to add or remove thermal management devices
Connect over USB a computer to analyze data in FLIR Tools+

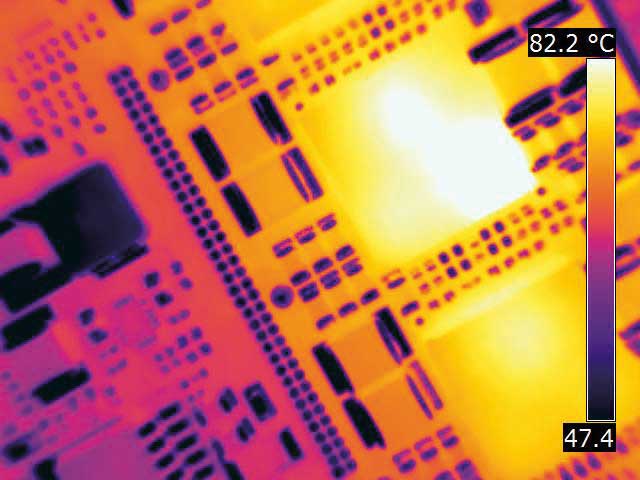

Measure small components down to 170 µm per pixel spot size
Reduce Test Times

The FLIR ETS320 takes the guesswork out of thermal testing, for fast discovery of hot spots and potential points of failure.

  • Sensitive enough to detect temperature shifts smaller than 0.06℃
  • Wide temperature range, from -20℃ to 250℃, for quantifying heat generation and thermal dissipation
  • Measures small components down to 170 µm per pixel spot size
Improve Product Design

The FLIR ETS320 promotes design improvements and shortens product development time by detecting design flaws that materialize as heat.

  • 320 x 240 IR sensor offers 76,800 points of non-contact temperature measurement
  • True 45° field of view for broad initial scans to identify potential problems
  • Measurement accuracy of ±℃ promotes quality assurance and factory acceptance of PCBs

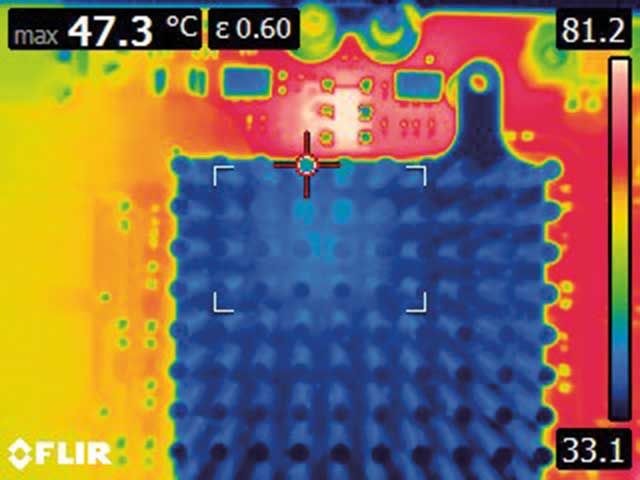

Determine where to add or remove thermal management devices
Designed for Laboratory Work

The ETS320 is designed for hands-free laboratory testing, with simplified features that allow users to focus on their work instead of on the camera controls.

  • Pole mount included for fast and easy setup
  • Crisp 3" LCD display provides immediate thermal feedback
  • FLIR Tools+ software for instant analysis, including Time vs. Temperature measurement
Save Money

Improve rapid prototyping and reduce product development cycles.


Connect over USB a computer to analyze data in FLIR Tools+
Customer Testimonial

John Larkin talks about the challenges Highland Technology faces when testing electronics, and how using benchtop thermal imaging like the new FLIR ETS320 make that even easier and more efficient!

FLIR ETS320 Specifications

System Overview
IR Resolution 320 x 240 (76,800 pixels)
Detector Type Uncooled microbolometer
Spectral Range 7.5 - 13.0μm
Thermal Sensitivity/NETD <0.06°C
Field of View (FOV) 45° x 34°
Fixed Focus Distance 70mm ± 10mm
F-number 1.5
Spot Size @ Min. Focus 1 70μm
Image Frequency 9Hz
Measurement and Analysis
Object Temperature Range -20 to 250°C (-4 to 482°F)
Accuracy ±3°C or ±3% of reading for ambient temperature 10 to 35°C (50 to 95°F)
Spotmeter Center spot
Area Box with max/min
Emissivity Correction Variable from 0.1 to 1.0
Emissivity Table Table of pre-defined materials
Reflected Apparent Temperature Correction Automatic, based on input of reflected temperature
Storage of Images
Image File Formats Standard radiometric JPEG, 14-bit measurement data included
Video Streaming
Radiometric IR Video Streaming Full dynamic to PC (FLIR Tools/Tools+) using USB
Non-Radiometric IR Video Streaming Uncompressed colorized video using USB
Click here for complete specifications on the FLIR ETS320

What's included with the FLIR ETS320

  • Thermal Imaging Solution for Electronics Testing
  • Camera
  • Mount
  • Stand
  • Power supply
  • USB cable
  • FLIR Tools+ software

Introducing the FLIR ETS320 Benchtop Thermal Imaging Camera


Thermal Imaging for Benchtop Electronics Design - Meet the FLIR ETS320

Review the FLIR Systems ETS320
