Quickly identify hot spots and discover potential points of failure in electrical distribution and mechanical systems with the superior resolution and range performance.
Quickly identify hot spots and discover potential points of failure in electrical distribution and mechanical systems with the superior resolution and range performance.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

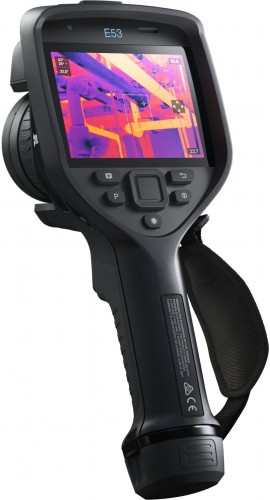

With up to 161,472 pixels resolution and a more vibrant LCD screen than any other pistol-grip camera, the E53-24 makes it easier than ever to diagnose problems—even at a distance. Avoid costly shutdowns and lost production time through regular predictive maintenance routines with this rugged, intuitive camera.
Improve Plant Reliability
Equipment failures are costly and can impact on-time delivery, so it's important to find hidden problems early
Increase Plant Safety
The E53-24 will help you diagnose and report electrical and mechanical failures before they lead to fires or explosions
Make Your Work Easier
FLIR designed the E53-24 camera with features that streamline your workday
| IR Resolution | 240 x 180 (43,200 pixels) |
| Object Temperature Range | -20 to 120ºC (-4 to 248ºF) 0 to 650ºC (32 to 1200ºF) |
| Focus | Manual |
| Measurement Presets | No Measurement, Center Spot, Hot Spot, Cold Spot, 3 Spots, Hot Spot-Spot |
| Spotmeter | 3 in live mode |
| Area | 1 in live mode |
| Picture-in-Picture | Centered infrared area on the visual image |
| Detector Type and Pitch | Uncooled microbolometer, 17μm |
| Thermal Sensitivity/NETD | <0.04ºC @ 30ºC (86ºF), 24º lens |
| Spectral Range | 7.5 to 14.0μm |
| Image Frequency | 30Hz |
| Field of View (FOV) | 24º x 18º (18mm lens) |
| F-Number | f/1.3 |
| Lens Identification | Automatic |
| Digital Zoom | 1 to 4x continuous |
The E75, E85, E95, and E53 thermal imaging cameras are packed with the features you need to find hot spots, detect the early signs of building deficiencies, troubleshoot electrical and mechanical systems, and prevent problems before they cause serious damage.
Electrical and mechanical applications with the FLIR Exx-Series
Improve Plant Reliability: FLIR Exx-Series thermal imaging cameras offer superior resolution, precise laser-assisted autofocusing, and the option of interchangeable lenses so you can target any component, survey from top to bottom, and avoid costly shutdowns.
Improve Plant Safety: Exx-Series cameras detect minute temperature differences, so you can identify failing components before they lead to fires or explosions. Plus, the Exx-Series was designed with convenient buttons for easy, one-handed operation—allowing you to work safely while you keep others safe.
Building inspection applications with the FLIR Exx-Series
Find Hidden Deficiencies: FLIR Exx-Series thermal imaging cameras offer the superior sensitivity and performance you need to detect subtle temperature differences, and the wide field of view to target broad areas—so you can locate problems and fix them, fast. Document Problems Quickly: Report critical issues immediately, with images and data uploaded from the Exx via the built-in Wi-Fi. Other reporting features, such as voice annotation, customizable work folders, and Bluetooth connection to FLIR clamp and multimeters, make the Exx a valuable tool for finding, documenting, and fixing problems.
Additional applications with the FLIR Exx-Series
One-handed operation allows this individual to perform a thermal inspection inside an electrical panel from a distance.
FLIR thermal imaging camera used inside a home to identify any temperature-related problems.
The FLIR EXX series of thermal imaging cameras provide high-quality images that help you quickly identify issues.
Streamlined data collection and sharing speeds analysis and repairs.Electrical and mechanical inspections
In this video, you will get to see the thermal imager used to detect heat. This product's ability to detect heat makes it ideal for electrical and mechanical applications. Additionally, it also goes over the main features of the imagers.
Building Inspections
This video will serve as the introduction of this thermal imager. You will also be able to see the unit in action while inspecting a house. Additionally, it also goes over the main features of the imagers.
| IR Resolution | 240 x 180 (43,200 pixels) |
| Object Temperature Range | -20 to 120ºC (-4 to 248ºF) 0 to 650ºC (32 to 1200ºF) |
| Focus | Manual |
| Measurement Presets | No Measurement, Center Spot, Hot Spot, Cold Spot, 3 Spots, Hot Spot-Spot |
| Spotmeter | 3 in live mode |
| Area | 1 in live mode |
| Picture-in-Picture | Centered infrared area on the visual image |
| Detector Type and Pitch | Uncooled microbolometer, 17μm |
| Thermal Sensitivity/NETD | <0.04ºC @ 30ºC (86ºF), 24º lens |
| Spectral Range | 7.5 to 14.0μm |
| Image Frequency | 30Hz |
| Field of View (FOV) | 24º x 18º (18mm lens) |
| F-Number | f/1.3 |
| Lens Identification | Automatic |
| Digital Zoom | 1 to 4x continuous |
The E75, E85, E95, and E53 thermal imaging cameras are packed with the features you need to find hot spots, detect the early signs of building deficiencies, troubleshoot electrical and mechanical systems, and prevent problems before they cause serious damage.
Electrical and mechanical applications with the FLIR Exx-Series
Improve Plant Reliability: FLIR Exx-Series thermal imaging cameras offer superior resolution, precise laser-assisted autofocusing, and the option of interchangeable lenses so you can target any component, survey from top to bottom, and avoid costly shutdowns.
Improve Plant Safety: Exx-Series cameras detect minute temperature differences, so you can identify failing components before they lead to fires or explosions. Plus, the Exx-Series was designed with convenient buttons for easy, one-handed operation—allowing you to work safely while you keep others safe.
Building inspection applications with the FLIR Exx-Series
Find Hidden Deficiencies: FLIR Exx-Series thermal imaging cameras offer the superior sensitivity and performance you need to detect subtle temperature differences, and the wide field of view to target broad areas—so you can locate problems and fix them, fast. Document Problems Quickly: Report critical issues immediately, with images and data uploaded from the Exx via the built-in Wi-Fi. Other reporting features, such as voice annotation, customizable work folders, and Bluetooth connection to FLIR clamp and multimeters, make the Exx a valuable tool for finding, documenting, and fixing problems.
Additional applications with the FLIR Exx-Series
One-handed operation allows this individual to perform a thermal inspection inside an electrical panel from a distance.FLIR thermal imaging camera used inside a home to identify any temperature-related problems.The FLIR EXX series of thermal imaging cameras provide high-quality images that help you quickly identify issues.Streamlined data collection and sharing speeds analysis and repairs.Electrical and mechanical inspections
In this video, you will get to see the thermal imager used to detect heat. This product's ability to detect heat makes it ideal for electrical and mechanical applications. Additionally, it also goes over the main features of the imagers.
Building Inspections
This video will serve as the introduction of this thermal imager. You will also be able to see the unit in action while inspecting a house. Additionally, it also goes over the main features of the imagers.
