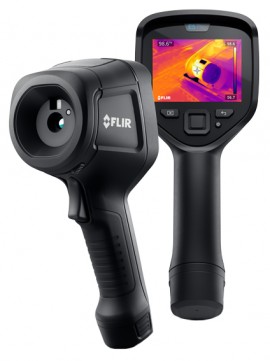

See moisture damage, heat loss, electrical, mechanical, and other thermal issues clearly with this infrared camera that features optics always in focus and a large, sharp, 640 x 480 touchscreen. In addition, it recognizes the location of problems thanks to MSX® technology, which embosses key visual details onto thermal images.
See moisture damage, heat loss, electrical, mechanical, and other thermal issues clearly with this infrared camera that features optics always in focus and a large, sharp, 640 x 480 touchscreen. In addition, it recognizes the location of problems thanks to MSX® technology, which embosses key visual details onto thermal images.
| IR Resolution | 160 x 120 (19,200 pixels) |
| Thermal Sensitivity/NETD | <0.11°F (0.06°C)/<60 mK at 86°F (30°C) |
| Spatial Resolution (IFOV) | 3.7 mrad |
| Field of View (FOV) | 33 x 25° |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Color Palettes | Iron, White Hot, Black Hot, Rainbow, Arctic, Lava, Rainbow HC |
| Digital Camera | 5 MP |
| Picture-in-Picture | IR area on visual image |
| Detector Type | Uncooled microbolometer |
| Image Modes | Thermal MSX, thermal, picture-in-picture, digital camera |
| Minimum Focus Distance | 1.18' (0.36 m) |
| Spectral Range | 7.5 to 13 µm |
| Measurement and Analysis | Object temperature range: -4 to 752°F (-20 to 400°C) in two ranges Accuracy: ±3.6°F (±2°C) or ±2% of reading, for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C) Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation Set-up commands: Local adaptation of units, language, date and time formats Spot meter: Center spot; box with minimum/maximum Isotherm: Above alarm, below alarm Delta T: Yes, NFPA 70B compliant |
| Inspection Efficiency | Multi-Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail FLIR Ignite: Instant upload to cloud storage over Wi-Fi FLIR Thermal Studio Suite: Compatible with a full range of analysis and reporting software Capacitive touchscreen: Access to onscreen menus, features, and keyboard Text: Text annotation on image using onscreen keyboard Gallery: Thumbnails and custom folder structure 1-touch level/span: Yes; automatic contrast enhancement |
| User Interface | Display: 3.5" (88.9 mm), 640 x 480 color LCD Flashlight: Bright LED |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity with Wi-Fi |
| Wi-Fi | Standard: 802.11 a/b/g/n (2.4 and 5 GHz) |
| Environmental Conditions | Operating temperature range: 5 to 122°F (-15 to 50°C) Storage temperature range: -40 to 158°F (-40 to 70°C) Operating/storage humidity: IEC 60068-2-30/24 h, 95% relative humidity Encapsulation: IP54 (IEC 60529) Drop test: 6.6' (2 m) Shock: 25 g (IEC 60068-2-27) Vibration: 2 g (IEC 60068-2-6) |
| Certifications | UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC |
| EMC | EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B |
| Power | Battery type: Rechargeable Lithium-ion battery Battery operating time: 4 hours Charging system: Battery is charged inside the camera or in specific charger Charging time: 2 hours Power management: Automatic shut-down |
| Dimensions | 9.6 x 3.7 x 5.5" (244 x 95 x 140 mm) |
| Weight | 1.3 lbs (0.59 kg), including battery |
