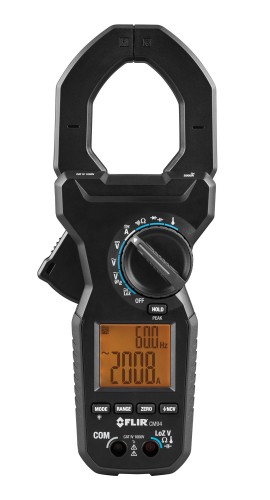

FLIR CM94 Utility Clamp Meter, 2000 A AC/DC

Model: CM94 | UPC: 793950370940

FLIR CM94 Utility Clamp Meter, 2000 A AC/DC-

Downloads: datasheet

More FLIR Products

Ask an Expert

FLIR CM94 Utility Clamp Meter, 2000 A AC/DC

Model: CM94 | UPC: 793950370940

Designed to tackle high-current measurements in demanding utility and industrial job sites, this clamp meter has an oversized, 2.2" (55 mm) jaw to securely clamp around conductor wires and busbars for accurate readings up to 2000 A AC and DC. The VFD mode allows you to tackle noisy signal environments to ensure correct measurements when working on large motors and motor controls.

Designed to tackle high-current measurements in demanding utility and industrial job sites, this clamp meter has an oversized, 2.2" (55 mm) jaw to securely clamp around conductor wires and busbars for accurate readings up to 2000 A AC and DC. The VFD mode allows you to tackle noisy signal environments to ensure correct measurements when working on large motors and motor controls.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

FLIR CM85-2 True RMS Power Clamp with Bluetooth connectivity, 1000 A-

FLIR CM85-2 True RMS Power Clamp with Bluetooth connectivity, 1000 A

Model: CM85-2

Work with premier power and troubleshooting functions with this 1000 A True RMS power clamp that features Bluetooth connectivity up to 32' (10 m) and delivers in demanding applications and any environment. In addition, this power clamp features dual LED work lights to access dimly lit areas for faster and safer inspections.

Learn More

FLIR CM94 Offers

Greater safety so you can focus on results

Get the right tool for high current jobs with improved safety built in.

  • CAT IV-1000 V rating protects from dangerous transient over-voltage near utility service equipment
  • Get accurate current readings on high current equipment up to 2000 A AC/DC
  • Eliminate errors from residual ghost voltage using LoZ (low impedance) mode

Packed with the functions you need

This full-featured clamp meter saves time and helps you troubleshoot effectively.

  • Trust accurate AC voltage and current measurements with True RMS, LoZ, and VFD mode to filter signal noise
  • Troubleshoot connections and components with a Continuity test mode
  • Measure resistance, frequency, and temperature
  • Work your way with both auto- and manual-ranging settings

The right tool for industrial jobs

Features an oversized jaw to clamp around large conductors or multiple conductors.

  • Generous jaw opening of 2.2" (55 mm)
  • Perfect for industrial electricians, utility workers, and electrical contractors
  • Ergonomic design is easy to hold with thumb dial for one-hand operation
  • Bright, large backlit 6000 count display that's easy to read in any conditions

Applications

  • Electrical
  • Utilities
  • Industrial

FLIR CM94 Specifications

AC Current
Range and Resolution 200.0, 2000 A
Basic Accuracy ±2%
DC Current
Range and Resolution 200.0, 2000 A
Basic Accuracy ±2%
AC Voltage
Range and Resolution 6.000, 60.00, 600.0, 1000 V
Basic Accuracy ±1.2%/5 d
AC Voltage (Digital Low Pass Filter - VFD)
Range and Resolution 6.000, 60.00, 600.0, 1000 V
Basic Accuracy ±2%
LoZ Mode AC Voltage
Range and Resolution 6.000, 60.00, 600.0, 1000 V
Basic Accuracy ±1.5%
DC Voltage
Range and Resolution 6.000, 60.00, 600.0, 1000 V
Basic Accuracy ±0.5%
LoZ Mode DC Voltage
Range and Resolution 6.000, 60.00, 600.0, 1000 V
Basic Accuracy ±1.3%
Frequency
Range and Resolution 40.00 to 400.0 Hz (ACA)
50.00 to 400.0 Hz (ACV)
Basic Accuracy ±1%
Resistance
Range and Resolution 600.0, 6.000 k, 60.00 kΩ
600.0 kΩ
6.000 M
40.00 MΩ
Basic Accuracy ±0.5%
±0.8%
±1.2%
±2.3%
Diode Test
Range and Resolution 1.000 V
Basic Accuracy ±1.0%
Capacitance
Range and Resolution 60.00, 600.0 nF
6.000, 60.00, 6000.0, 2000 μF
Basic Accuracy ±2.0%
Temperature
Range and Resolution -58 to 1832°F (-50 to 1000°C)
Basic Accuracy ±0.3%
Continuity
Range and Resolution 10 to 200 Ω, 2 kHz buzzer
General Specifications
Display 3⅚ digits, 6000 counts
3½ digits 1999 counts for Hz
Operating Temperature 14 to 122°F (-10 to 50°C)
Operating Relative Humidity Maximum relative humidity 80% for temperature up to 88°F (31°C) decreasing linearly to 50% relative humidity at 122°F (50°C)
Storage Temperature -4 to 140°F (-20 to 60°C) <80% RH (with battery removed)</td>
Drop Test 6.5' (2 m)
IP Rating IP40
Safety Category Rating CAT IV-1000 V
Certifications UL, CE, CSA, RCM
Battery 2 x AA
Dimensions 10.6 x 4.2 x 2" (269 x 106 x 51 mm)
Weight 24.7 oz (700 g)
Click here for complete specifications on the FLIR CM94

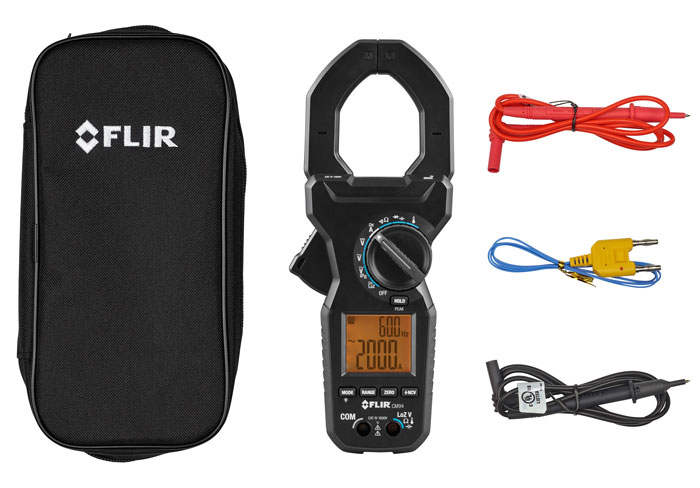

What's included with the FLIR CM94

  • Clamp Meter
  • Test Lead Set
  • Banana Plug Type-K Thermocouple
  • Soft Carrying Pouch
  • Quick Start Guide
  • Manual
  • Three-Year Warranty
datasheet for the FLIR CM94 Utility Clamp Meter, 2000 A AC/DC
