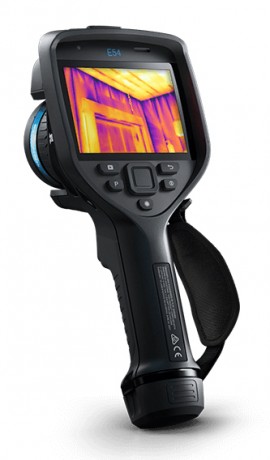

FLIR 84512-1201-NIST Advanced Thermal Imaging Camera, includes Traceable Calibration Certificate

Model: 84512-1201-NIST | Order No: E54-24-NIST

FLIR 84512-1201-NIST Advanced Thermal Imaging Camera,-


Downloads: datasheet

More FLIR Products

Ask an Expert

FLIR 84512-1201-NIST Advanced Thermal Imaging Camera, includes Traceable Calibration Certificate

Model: 84512-1201-NIST | Order No: E54-24-NIST

Offers resolution and sensitivity for basic condition monitoring, this advanced thermal imaging camera is ideal for electrical/mechanical inspection, as well as building inspection. Producing crisp and vibrant imagery, the camera features a 320 x 240 thermal detector that accurately measures temperatures up to 1202°F (650°C). This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Offers resolution and sensitivity for basic condition monitoring, this advanced thermal imaging camera is ideal for electrical/mechanical inspection, as well as building inspection. Producing crisp and vibrant imagery, the camera features a 320 x 240 thermal detector that accurately measures temperatures up to 1202°F (650°C). This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Your Price $7309.00 USD
Availability 3 to 4 Weeks
Quantity

FLIR 84512-1201-NIST Offers

Improved contrast for faster troubleshooting.

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

  • Exclusive inspection route camera pption automatically enabled in the camera
  • Designed for thermographers
  • FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues
  • Offers 3 spotmeters, and displays max/min temperature within area live, on-screen
  • Onboard integration with FLIR routing software, built-in mic for voice annotation, and report generation features all help streamline work

Applications

  • Basic condition monitoring
  • Electrical/mechanical inspection
  • Building inspection

FLIR 84512-1201-NIST Specifications

Display 4", 640 x 480 pixel touchscreen LCD with auto-rotation
FLIR Inspection Route Enabled in camera
Laser Pointer Yes
Programmable Buttons 1
Text Predefined list or touchscreen keyboard
Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
Compliance and Certifications NIST Certification
Communication Interfaces USB 2.0, Bluetooth, Wi-Fi, DisplayPort
Storage Media Removable SD card
Temperature Range Operating: 5 to 122°F (-15 to 50°C)
Storage: -40 to 158°F (-40 to 70°C)
Safety EN/UL/CSA/PSE 60950-1
Digital Camera 5 MP, with built-in LED photo/video lamp
Digital Zoom 1 to 4x continuous
Global Positioning System (GPS) Automatic image tagging
Image Frequency 30 Hz
IR Resolution 320 x 240 pixels
Thermal Sensitivity/NETD <40 mK at 86⪚F (30°C)
Accuracy ±3.6°F(±2°C) or ±2% of the reading
Battery Operating Time > 2.5 hours at 68°F (25°C) and typical use
Battery Type Rechargeable Li-ion battery
Image File Format Standard JPEG with measurement data included. Infrared-only mode
Image Storage Mode Infrared, Visual, MSX, Picture-in-Picture, Gallery
Dimensions 11 x 4.6 x 4.4" (278.4 x 116.1 x 113.1 mm)
Weight 2.2 lbs (1 kg)
Click here for complete specifications on the FLIR 84512-1201-NIST

What's included with the FLIR 84512-1201-NIST

  • Advanced Thermal Imaging Camera with MSX Technology
  • Traceable Calibration Certificate with full Data and Uncertainties
  • 24° Lens
  • Small Viewfinder Eyecup
  • 2 x Battery
  • Battery Charger
  • Hard Transport Case
  • Lanyard(s)
  • Front Lens Cap
  • Power Suppl(ies)
  • SD Card (8 GB)
  • USB 2.0 A to USB Type-C Cable
  • USB Type-C to HDMI Cable
  • USB Type-C to USB Type-C Cable
  • License Card: FLIR Thermal Studio Pro (3 Month Subscription)
  • FLIR Route Creator Software Plugin for Thermal Studio Pro (3 Month Subscription)
  • User Manual

Webinar: Industrial Software Solutions for Thermal Imaging Cameras with FLIR


There are a lot of factors to consider when shopping for a thermal imager… resolution, focus, emissivity, temperature range, application, budget, and so much more. One major factor that is often overlooked is the available software solutions for that camera.<br/><br/>In this webinar we cover:<br/><ul><li>Introduction into thermal imaging</li><li>What camera/software solution combo is right for me?</li><li>Teledyne FLIR Ignite Software</li><li>Teledyne FLIR Tools Mobile Software</li><li>Teledyne FLIR Thermal Studio Suite; Starter, Standard, Pro</li><li>Teledyne FLIR Route Creator</li></ul>
