Specific, Convenient Data Collection & Storage

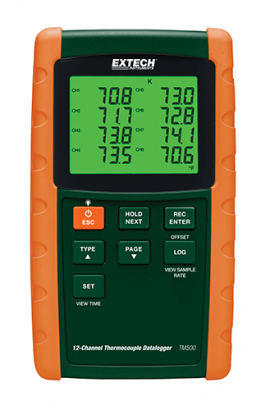

Accepts 6 thermocouple types (J, K, E, T, R, S) and simultaneously displays CH1 to CH8 or CH9 to CH12. Data can be recorded from all 12 channels simultaneously onto an SD card in Excel format.
Accepts 6 thermocouple types (J, K, E, T, R, S) and simultaneously displays CH1 to CH8 or CH9 to CH12. Data can be recorded from all 12 channels simultaneously onto an SD card in Excel format.
Features
Applications
| Type J Temperature Range | -148 to 2102°F (-100 to 1150°C) |
| Type K Temperature Range | -148 to 2372°F (-100 to 1300°C) |
| Type T Temperature Range | -148 to 752°F (-100 to 400°C) |
| Type E Temperature Range | -148 to 1652°F (-100 to 900°C) |
| Type R Temperature Range | 32 to 3092°F (0 to 1700°C) |
| Type S Temperature Range | 32 to 2732°F (0 to 1500°C) |
| Dimensions | 8.9 x 4.9 x 2.5" (225 x 125 x 64mm) |
| Weight | 2.1lb (944g) |
Click on a category to view a selection of compatible accessories with the Extech TM500 12-Channel Data Logging Thermometer.
| Type J Temperature Range | -148 to 2102°F (-100 to 1150°C) |
| Type K Temperature Range | -148 to 2372°F (-100 to 1300°C) |
| Type T Temperature Range | -148 to 752°F (-100 to 400°C) |
| Type E Temperature Range | -148 to 1652°F (-100 to 900°C) |
| Type R Temperature Range | 32 to 3092°F (0 to 1700°C) |
| Type S Temperature Range | 32 to 2732°F (0 to 1500°C) |
| Dimensions | 8.9 x 4.9 x 2.5" (225 x 125 x 64mm) |
| Weight | 2.1lb (944g) |
Click on a category to view a selection of compatible accessories with the Extech TM500 12-Channel Data Logging Thermometer.
