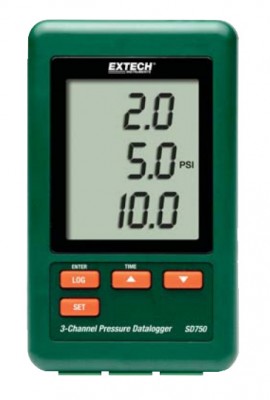

Extech SD750-NISTL 3-Channel Pressure Data Logger, includes Traceable Certificate

Model: SD750-NISTL | UPC: 793950437063

Extech SD750-NISTL 3-Channel Pressure Data Logger, includes Traceable Certificate

Model: SD750-NISTL | UPC: 793950437063

Triple LCD simultaneously displays 3 pressure channels in 9 different units of measure. Date/time stamps and stores data on an SD card in Excel format. This product includes a Traceable Certificate with full Data and Uncertainties.

Triple LCD simultaneously displays 3 pressure channels in 9 different units of measure. Date/time stamps and stores data on an SD card in Excel format. This product includes a Traceable Certificate with full Data and Uncertainties.

This product has been discontinued. Click here for the replacement model(s).


Extech SD750-NISTL Offers

Features

  • Triple LCD simultaneously displays 3 pressure channels
  • Up to 5000psi with 4-20mA output
  • 4-20mA input with readout in 9 units of measure
  • Datalogger date/time stamps and stores readings on an SD card in Excel® format
  • User-selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or auto
  • Complete with six AAA batteries, 2G SD card, universal AC adaptor, three connectors, and mounting bracket
  • Transducers sold separately

Applications

  • Pressure measurements
  • Hydraulic
  • Pneumatic
  • Air Compressor
  • Gas systems

Extech SD750-NISTL Specifications

Display 60 x 50 mm (2.4 x 2.0") LCD
Measurements Pressure from up to 3 two-wire pressure transducers
Input Signals Linear 4-20 mA DC process signal
Accuracy ± (0.5% + 2 digits) of reading (meter only, does not include transducer error)
Memory Card SD memory card, 1 GB to 16 GB (4 GB maximum recommended)
Datalogger Sampling Rate 5/10/30/60/120/300/600 seconds or Automatic
Datalogger errors 0.1% maximum for total saved data (typical)
Temp. Compensation Automatic
Display update rate Approx. 1 second
Data Output RS 232 Serial Interface; 16-bit data stream via 3.5mm jack
Operating Temperature 0 to 50°C (32 to 122°F)
Operating Humidity Less than 85% RH
Weight 199 g (0.44 lbs.)
Dimensions 132 x 80 x 32mm (5.2 x 3.1 x 1.3")
Click here for complete specifications on the Extech SD750-NISTL

What's included with the Extech SD750-NISTL

  • 6X AAA Alkaline, Heavy Duty 1.5V Batteries
  • Limited NIST Traceable Certificate
  • 9V AC Adapter
